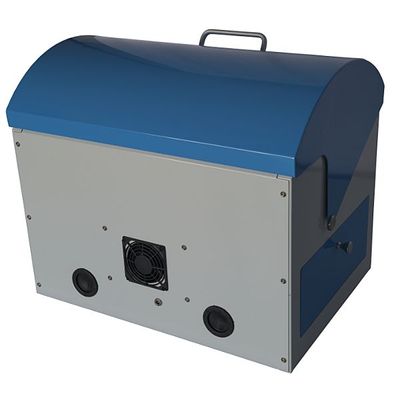

Sonation - Model USBB Series -Noise Reduction Boxes for Ultrasonic Baths

• High noise reduction up to 30dB(A). That means a drop in noise of 90 to 95%.
• Available in four different sizes for mostly all ultrasonic baths.
• The cover can be completely opened, so the removal of the basket is very easy to handle.
• There is no additional space needed to open the cover, so the box can be placed and operated under the extractor hood or under lab cabinets.
• Control panel stays visible. Thanks to the transparent front, the progress of the washing program can be observed anytime.
• Equipped with fast access openings on the front and both sides to operate the ultrasonic bath or to drain the cleaning agent.
• Integrated fan to remove vapors.
• Recessed grips on the sides for easy transportation.
• Oil and water repellant and flame-retardant acoustic foam.
• Powder coated, robust and easy cleanable surface.
• Cushioned opening mechanism for smooth and easy handling.

General:

• Sound proofing: Black laminated acoustic foam, flame retardent according to MVSS 302
• Surface: Powder coated in RAL5012 and RAL7035
• Ventilation: Fan on the rear. Blow direction: Out
• Power supply: 12V/6W with included wall power supply

USBB-S:

• Outer dimensions: 512x350x425mm (LxWxH)
• Max. inner dimensions: 454x269x316mm (LxWxH)
• Weight: 15kg

USBB-M:

• Outer dimensions: 557x410x545mm(LxWxH)
• Max. inner dimensions: 479x329x415mm(LxWxH)
• Weight: 20kg

USBB-L:

• Outer dimensions: 607x460x633mm(LxWxH)
• Max. inner dimensions: 529x379x496mm(LxWxH)
• Weight: 25kg

USBB-XL:

• Outer dimensions: 782x610x671mm(LxWxH)
• Max. inner dimensions: 704x529x516mm(LxWxH)
• Weight: 30kg
