Sonic - Model SDC550-18 -Crawler Drill Rig

FromSonic Drill Corporation (SDC)

SHARE

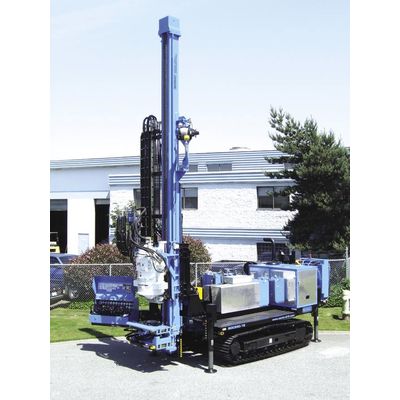

The SDC550-18 crawler drill rig offers the full performance of a larger Sonic drill rig but in a compact and agile model. This rig is designed to handle short length casings and is ideal for maneuvering through sites with poor ground conditions and space limitations. The SDC550-18 is available with a full 360° slew (swing) drive, 4 foot tower slide and automated rod handler. Sonic drilling also offers outstanding performance in geothermal installations and core sampling applications.

Most popular related searches

sonic drilling rig

triplex piston pump

pressure washer hydraulic

water storage tank

slewing bearing

hydraulic cylinder

balancing valve

POWER SOURCE: Skid Mounted, Caterpillar Engine Model C7, 250 HP @ 1850 RPM, EPA/CARB Tier 3, Hydraulic Oil Cooler, Engine Management System (EMS) Panel, Clutched 3 Pad Pump Drive. Note: Optional 275 HP model also available
RIG DECK: (4) 4” x 30” Jacklegs w/ Counter Balance Valve, (4) Jackleg Covers, Formed & Reinforced Deck Skin, Tubular & Channel Framework, Anti-Slip Surface
DRILLING MAST: Single Tube Construction, 18 FT Head Travel, 28 FT - 2” Overall Length, Hydraulic Cylinder/Chain Driven System, Trolley, Spring Chain Take-up, Chain Tension Equalizer, Fully Enclosed, Pullback: 24,000 LBS, Pulldown: 16,000 LBS, Max Casing Length 15 FT
JIB HOIST: Main Hoisting Winch, 4,000 LBS Capacity (Bare Drum), 72 FPM, 3/8” x 157 FT Non-Rotating Cable, Swing Cylinder (Jib Swing Interlock & Auto Stop Options also available)
WATER PUMP: FMC L1122-D Triplex Piston Pump, 75 GPM, 1000 PSI, Direct Coupled Hydraulic Motor, Coupling Guard, 2” Camlock w/ Dust Cap, PRV (Other Pump sizes available)
HYDRAULIC SYSTEM: Hydrostatic Circuit 4500 PSI, Pilot Control, Micro Feed, Float Up/Down, Holdback, High/Low Speed Feed Load Sense, Cold Start, Reservoir Capacity 120 Gal.
SONIC HEAD: Model SONICOR 50K, Hydraulic 90 Degree Tilting Cylinders
HOSE CARRIER SYSTEM: High Pressure Hydraulic Tubing
CONTROL CONSOLE / SWING ARM: 90˚ Swing, Compact Lightweight Construction, Ergonomic Configuration, Hinged Gas Dampered Door, Laser-Cut Aluminum Anodized Face Plate, Key Start, Remote Throttle, Digital Tachometer, Pilot Control Valves & Illuminated Console
CRAWLER BASE: CAT Crawler Model 312C (Optional Slew Bearing & Drive Package), Steel Triple Grouser 20” STD (Optional Rubber Tracks), Pendant Control With Cable is Standard (Optional Wireless Radio Transmitter)
BREAKOUT TABLE: BTC-28 Open C-Clamp Table, Clamping Range: 2 1/2”-8 5/8” Vee-Groove Hardened Inserts

Rod Box: stores (12) 4 1/2” O.D. X 10 ft rods
Deck Boxes: 2 ft, 4 ft & custom sizes available
Rod Spinner: 2 1/2”- 6”, anti-torque arm, suspension arm
Remote Clutch Lever: located in console
Hot Water Heater: 6 gpm, 3000 psi, 150˚f, 420,000 btu/hr
Pressure Washer (hydraulic): many models available
Pipe Guides: sizes 4” through 12”
Hydraulic Oil Cooler: 135,000 btu/hr @ 35 gpm
Angle Drilling Mast (tower slide): 4 ft total
Winch Assembly: 12,000 lbs
Emergency Stop pull cord system: meets ce standard for European compliance
Automatic greasing system: air operated system, lubricates Over 70 points, manual pump option available
Water storage tank: 132 gal. Cap, mounts between crawler Tracks, not available on slew bearing units
Fast fill system: for diesel fuel, hydraulic oil & engine oil Extraction Btc-412 breakout table: clamping range 4 1/2”-12 3/4”, veegroove
Hardened inserts
Rh/lh torque reversal
Powered tower locks
Automatic rod handler
Truck / skid / crawler mounting
