Sonic Drill Corporation (SDC) products

Steel deck complete with nonskid walking surfaces. Hydraulic stabilizer legs (two). 80 gallon hydraulic oil tank (approximately). Safety decals (English). Fully painted, black and white. Rexroth valves, pumps and controls (where possible). Control console, swing mounted. Safety and operation manual (two copies, English). Three hole pump drive box (Funk) complete with clutch. Approximately 14 gallons hydraulic oil (AW46) 56 HP diesel powered unit (Perkins 404D - 22T 2.2 litre turbocharges, EC Stage 3A/USA EPA Tier 3) complete with enclosure. EP-26 drill head.

Automated single rod handler (SRL) w/ 90 degree wrist. Breakout table upgrade (up to 12 inch nominal, 2 level). Deck boxes (2) with locks – above deck mounting. Lighting package (tower). Secondary oil cooler package. Two auxiliary hydraulic service lines with electrical, valve and hydraulic quick disconnects. Water pump, Bean FMC model L1122 HSNAR (75 GPM/1000 psi Abrasion resistant). SPT Auto Hammer (140 lb.) with cradle mount, hydraulic control circuit and quick disconnect hoses. Cold Weather “Artic Fox” Winterization Package.

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level). 14 foot (4.25 m) drill head travel complete with 90 degree tilt. 2` receiver, on deck (one only). Hydraulic stabilizer legs (four). Safety decals (english). Fully painted, black and white. Rexroth valves, pumps and controls (where possible). Main control console. Operator`s control console (swing arm mount). Safety and operation manual (two copies, English). Side shift (head only, to the right when facing drill head). Deck mounted power unit (225 HP Cat, 24V). Hose track assembly for tower hosing. Rubber track assembly. Wireless controller (track control only). Sonicor 50K drill head.

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level). 24 ft (7.32 m) drill head travel complete with 90 degree tilt. Steel deck complete with nonskid walking surfaces. Hydraulic stabilizer legs (four). Safety decals (English). Fully painted, black and white. Rexroth valves, pumps and controls (where possible). Main control console. Operator`s control console (swing arm mount). Safety and operation manual (two copies, English). Deck mounted power unit (173 HP Perkins, 24V) complete with enclosure. Hose track assembly for tower hosing. Steel track assembly. Rotary drill head.

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level). 15 ft (4.57 m) drill head travel complete with 90 degree tilt. Steel deck complete with nonskid walking surfaces. Hydraulic stabilizer legs (four). Safety decals (English). Fully painted, black and white. Rexroth valves, pumps and controls (where possible). Main control console. Operator`s control console (swing arm mount). Safety and operation manual (two copies, English). Deck mounted power unit (250 HP Cat, 24V) complete with enclosure. Hose track assembly for tower hosing. Rubber track assembly. Sonicor 50K drill head.

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level). 24 ft (? m) drill head travel complete with 90 degree tilt. Steel deck complete with nonskid walking surfaces. Hydraulic stabilizer legs (four). Safety decals (English). Fully painted, black and white. Rexroth valves, pumps and controls (where possible). Illuminated control console with hinged security cover (vertical). Safety and operation manual (two copies, English). Three hole pump drive box, complete with clutch. 180 gal (US) (? L) hydraulic oil (approximately, standard grade). Deck mounted power unit (250 HP Cat, 24V) complete with enclosure. Hose track assembly for tower hosing. Tower slide, bumper and controls (48 inch travel). Sonicor 50K drill head.

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level). 24 ft (? m) drill head travel complete with 90 degree tilt. Steel deck complete with nonskid walking surfaces. Hydraulic stabilizer legs (four). Safety decals (English). Fully painted, black and white. Rexroth valves, pumps and controls (where possible). Pull back illuminated control console complete with valving, controls and hinged security cover (vertical). Safety and operation manual (two copies, English). Three hole pump drive box, complete with clutch. 180 gal (US) (? L) hydraulic oil (approximately, standard grade). Deck mounted power unit (250 HP Cat, 24V) complete with enclosure. Hose track assembly for tower hosing. Sonicor 50K drill head.

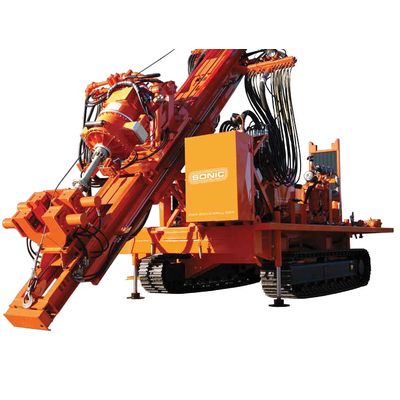

The SDC550-18 crawler drill rig offers the full performance of a larger Sonic drill rig but in a compact and agile model. This rig is designed to handle short length casings and is ideal for maneuvering through sites with poor ground conditions and space limitations. The SDC550-18 is available with a full 360° slew (swing) drive, 4 foot tower slide and automated rod handler. Sonic drilling also offers outstanding performance in geothermal installations and core sampling applications.

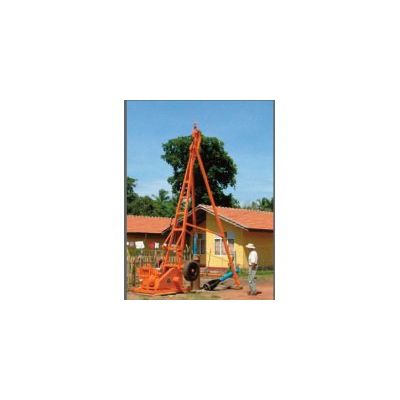

Complete mobile drilling rig for operating percussion drilling tools and casing, sampling and testing equipment. Suitable for towing behind Landrover or light truck. The MK2 features a new clutch, giving improved snatch capability to the rig.

The Dando Mintec 6 is a track mounted top drive mineral exploration drilling rig available with these features: Dando Mintec 6. High speed/high torque rotary head. High pressure air/water swivel. RC and RAB compatible. Main winch for handling tools/casing. Wireline winch. Mast dump and angle drilling. Hydraulic rod clamps. Onboard coring pump.
