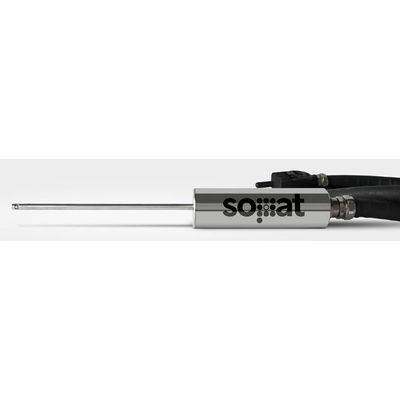

SOPAT - Model VI Probe - Ma -Inline Achromatic Endoscope for Particle Analysis
The Ma Probe offered by SOPAT is a versatile achromatic inline endoscope tailored for monitoring particle size and shape in laboratory and production contexts. This device features a narrow depth of field ideal for precise image analysis applications. Integration into active processes is straightforward, and adaptability is enhanced with options for cooling and purging tubes. The Ma Probe is compatible with various process connectors, including the Knick Ceramat W155 retractable fitting. It supports a particle size range of 1.5 to 250 µm and operates effectively between -10 to 130°C, with potential for higher temperatures with additional cooling. Constructed primarily from 316L stainless steel, it incorporates a sapphire window at the probe tip. The machine vision camera ensures detailed data acquisition, interfacing through GigE. Housing dimensions are compact, with an emphasis on durability and compliance with RoHS regulations. The design suits environments with pressures up to 320 bar on request.
The Ma Probe is an achromatic inline endoscope with a very narrow depth of field for various applications in laboratory or production environments.
This probe can be directly inserted into a running process to retrieve particle size and shape information via image analysis. The probe can be equipped with cooling and purging tubes to increase its applicability range. There are also numerous process connectors available, such as flanges, compression fittings, and the Knick Ceramat W155 retractable fitting.
- Particle Size Range : 1.5 – 250 µm
- Field of View (diag.) : 580 µm
Dimensions & Weights :
- Housing :
- Length: 240 mm
- Diameter: 72 mm
- Protection Tube :
- Wetted length: 320 mm*
- Wetted tube diameter: 12 mm
- Weight : 4.5 kg
Materials
- Housing : 1.4404 (316L)
- Protection tube : 1.4404 (316L)**
- Probe tip window : Sapphire
- Solder : Au/Sn 80/20
- Cable : Adaptaflex cable protection; type SPLHC; flexible; liquid resistant; IP67; black
Technical Data
- Permissible Process Temperature : -10 – 130°C (temperatures up to 450°C achievable with cooling tube accessory)
- Permissible Ambient Temperature : 0 – 40°C
- Permissible Process Pressure : 0 – 10 bar (higher pressure ratings up to 320 bar on request)
- Camera : 5.1 MP Machine Vision Camera with GigE Interface, 15 fps
- Power Supply : 141 VA (50-60 Hz)
- Cable :
- Standard length: 2.5 m
- Diameter: 27 mm
- Bending Radius: 20 cm
Approvals :
- Protection : IP 65
- Compliance : RoHS conform according to 2011/65/EU
