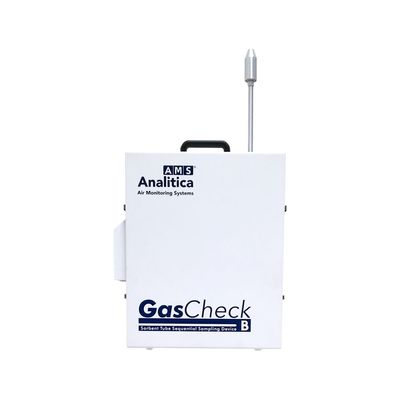

Gascheck Basic - Sorbent Tubes Sequential Sampler

• 6 position sequential sampling device
• Auto-seal sorbent tube system: during sampling, all other stored sorbent tubes are sealed to prevent sorbent cross contamination
• Suitable for use with 8x110, 10x110, 6x70 and TD 6,35 mm  OD sorbent tubes
• IP55 outdoor shelter
• Weight 7 kg
• Dimensions 29x37x14 cm (LxHxP)

GasCheck Basic and AirCube samplers options

The GasCheck Basic sorbent tubes sampling devices, should be connected with a portable AirCube sampling pump, in both models COM2-TH and Gas-Pro. Each sampler ha a specific aspirating flow range:

AirCube COM2-TH: 0,4 to 30 liters per minute, support correctly all sorbent tubes in a middle and high flow range (400 ml/minute to 2000 ml/minute). The COM2-TH can also support TSP sampling protocols and PM sampling with US-EPA impactor.

• VOC with 400mg charcoal coconut sorbent material: 400-600 ml/minute
• Formaldehyde with Silica+DNPH sorbent material: EPA-IP6A: up to 1000 ml/mi
• Formaldehyde with Silica+DNPH sorbent material: EPA-TO11A: up to 2000 ml/min
• PNA (Polynuclear Aromatic Hydrocarbons) XAD-2: Up to 2000 ml/min

AirCube GAS-PRO: 40 ml to 2000 ml/minute, correctly support all kind of sorbent tubes sampling needs. Extremely accurate on low flow and controlled with a mass flow meter, it is specially suitable for thermal desorption sorbent tube in the standard OD range of 6,35 mm and offer a strong back pressure compensation. The AirCube GasPro sampler, can support flow range also for standard chemical desorption sorbent tubes up to 2000 ml per minute.

• VOC with thermal desorption tube: EPA TO-17: up to 66,7 ml/min
• VOC with 400mg charcoal coconut sorbent material  : 400-600 ml/minute
• Formaldehyde with Silica+DNPH sorbent material: EPA-IP6A: up to 1000 ml/min
• Formaldehyde with Silica+DNPH sorbent material: EPA-TO11A: up to 2000 ml/min
• PNA (Polynuclear Aromatic Hydrocarbons) XAD-2: Up to 2000 ml/min

AirCube GasPro sampling flow range is between 40 ml/min and 2000 ml/min

• AirCube COM2-TH sampling flow range is between 0,4 l/min and 30 l/min
• Automatic back pressure compensation on sampling flow rate
• Flow control system with mass flow sensor with 1% accuracy (GasPro)
• Flow control system with volumetric flow sensor with 2% accuracy (COM2-TH)
• Sampling data handling stored in the memory and program user selectable by main menu
• Sampling programs selectable by time, flow and volume
• User interface with RS232 and USB ports
• SDC Software for data download and report
• Temperature detection at flow measurement point
• Ambient barometric pressure detection with different measurement units
• Aluminum outdoor shelter
• Option wind velocity and direction sensors available
• Option GSM modem available
• Power source 220V-AC
• Dimensions 26x26x26 cm (LxWxH)
• Weight 7 kg

The GasCheck Basic sampling system, is the ideal option to collect gas and vapors pollutant trough solid sorbent tubes inside or outside monitoring stations. The GasCheck Basic module can be positioned on the cabinet wall and the portable sampler in a separate position (max.2 mt). Each AirCube sampler, can handle up to two modules for a total of 12 sorbent tube sampling option. The user can select each sampler with an individual sampling strategy (flow, volume and time) and all data will be stored in the sampler memory ready to be retrieved by SDC software.

Both samplers can be powered with a 220V-AC or with their battery pack PowerPack (Option).

The GasCheck module is supplied with a standard heavy duty tripod stand and user manual.

Code: Product

• 600/GCB06001K: Sorbent tubes sequential device (require sampler)
• 600/GCB06002: Additional GasCheck Basic module without tripod
• 600/GCB6001-11: 2 units supportfor tripod mount
• MT/190X3: Tripod stand for unit support
• 600/GSG60013-1: Replacement support tube 10mm (1 piece)
• 600/GSG60014-1: Replacement support tube 6,35mm (1 piece)
• 600/SP106230K: Replacement tube support spring
• 600/OR10 SET: Replacement O-ring set 10mm
• 600/OR635SET : Replacement O-ring set 6,35mm
• 600/A30002C-TH: Air Cube Com-2TH portable sampling pump
• 600/A30002G-PRO: AirCube Gas Pro portable precision low flow gas sampler
