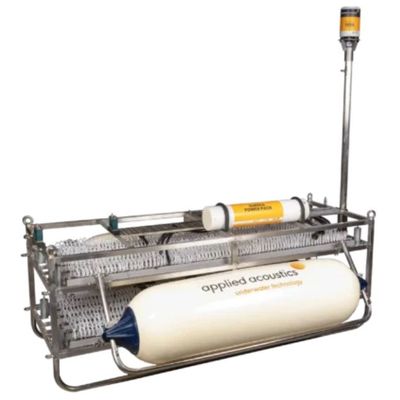

Applied Acoustics - Model Dura-Spark UHD 240/400 -Sound Source, Sparker
The Dura-Spark UHD 240/400 system consists of a negative voltage seismic energy source, the CSP-Nv, a sparker sound source with up to 400 long-life tips, connected by a rugged high voltage cable. Designed for high and ultra-high resolution geophysical surveys, and for use with single and multi-channel acquisition systems, the system is capable of providing high quality data with vertical resolution of up to 25cms, in water depths from 5 to 1000 metres.
- Long life, durable electrodes
- Pulse stability
- High resolution sub-bottom data, up to 25cms
- Tip array selection from on board junction box
- Flip-flop capability
- GNSS receiver option (101G MiniPod)
- High and Ultra-High Resolution geophysical surveys
- Windfarm site survey
- Geohazard survey
- Cable and pipeline route survey
- Single and multi-channel acquisition
- Water depths of 5 to >1000m
PHYSICAL
Dimensions
Length 1893mm
Height 372mm frame, 622mm including floatation
Width 650mm frame, 1280mm including floatation
Weight: 130kg (max)
Connector: RMK 1/0 complete with locking collar
ELECTRICAL
400 tip: 2000J, 5J per tip to minimise bubble collapse component, 2400J maximum
240 tip: 1000J, 5J per tip to minimise bubble collapse component, 1250J Maximum
Operating voltage: 3000-4000V
Maximum number of tips: 400 (5 x 80), 240 (3 x 80)
Power supply: CSP-Nv1200, CSP-Nv2400, CSP-SNv1250
SOUND OUTPUT
Source level: 226dB re 1µPa at 1m (typical)
Pulse length: 0.5 to 1.5ms Dependent on power applied
