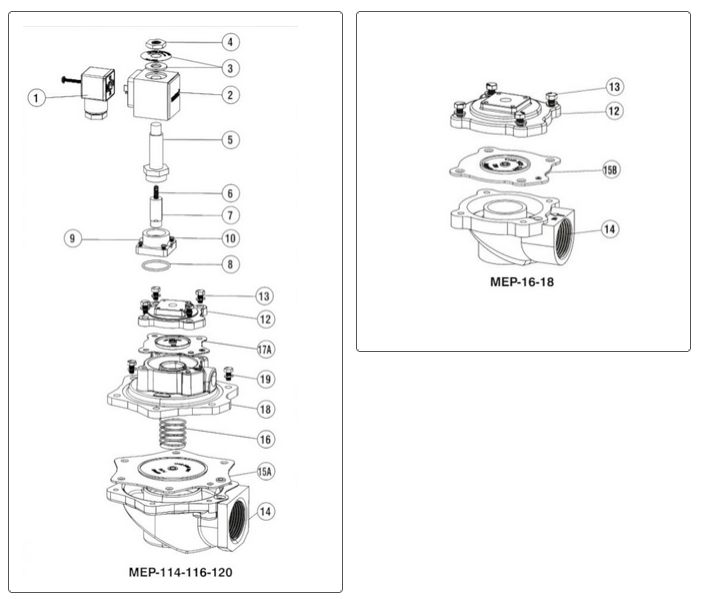

Maniks - Spares for Reverse Jet Pulse Valves
Maniks manufactures all kind of spares for reverse-jet pulse valves used in bag filters for dust collection, used typically in cement and steel plants. These spares are compatible with valves of various others makes like Maniks. The diaphragms are made application-specific by manufacturing in various materials like special imported polyester, neoprene and viton (for high temperature).
Most popular related searches
pulse valve
valve operator
diaphragm valve
bag filter
dust collection
high temperature valve
filter bag dust
dust filter
pulse bag filter
air valve
Pulse Valve Operation

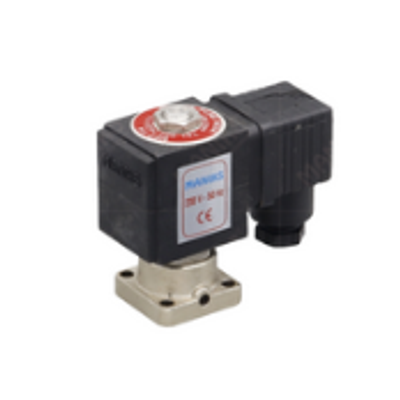

Maniks pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.
