Specac - Multi-Reflection ATR Accessory
The Gateway ATR is a 6-reflection ATR accessory from Specac designed for routine use in academic and industrial laboratories. Interchangeable sampling top plates allow for solid, liquid, flow and heated experiments to be performed.
- Horizontal ATR (HATR) design
- High sensitivity ATR
- Multiple Sampling options - Flat, troughed (for liquids), flow through and heating options available

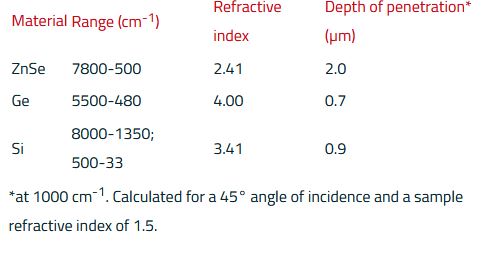

- ZnSe, Si and Ge crystal options
- 45 ° Angle of Incidence
The Gateway ATR is a 6-bounce multiple reflection ATR accessory designed for improved signal-to-noise resolution on low intensity peaks in your spectrum compared to single bounce accessories. Interchangeable Top Plate Options A wide range of interchangeable crystal ATR top-plates and sampling accessories can be used on the Gateway™ ATR Accessory optical unit to provide unrivalled sampling versatility. Analyse liquids, pastes and solids under static, flow conditions from ambient to 200 °C.
- Flat Top Plate (supplied as standard)
For pastes, viscous fluids and solids (with supplied clamp) under static conditions and ambient temperature.
- Trough Top Plate (supplied as standard)
For Liquids and pastes nder static conditions and ambient temperature.
- Electrically Heated Trough Top Plate
For studying samples under static conditions from ambient to 200 °C.
- Water Heated Trough Top-Plate
For studying samples under static conditions from sub-ambient to 90 °C. Requires thermocirculating bath. (LINK?)
- 550 μL Flow Through Top Plate
For monitoring Liquids under flow conditions at ambient temperatures
- 550 μL Thermostablaised Flow Through Top Plate
For monitoring Liquids under flow conditions at ambient to 90°C. Requires thermocirculating bath. (LINK?)
