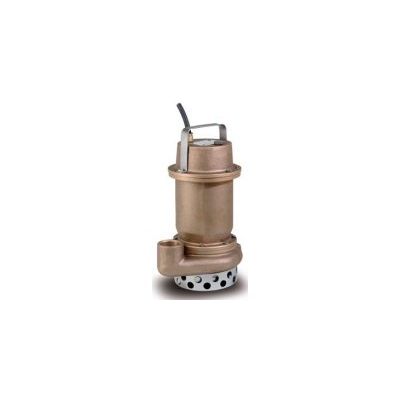

Zenit - Model DRB -Special Alloy Submersible Electric Pumps
Suitable for treating chemically aggressive strained liquids, dyes and seawater. Can be used for applications in the tanning industry and the shipping sector. General features : deliveries Gas 1 1/4` - 2`, motor poles 2, passages 10 mm, powers 0,37 ÷ 1,5 kw, special alloy pumps.
Most popular related searches
submersible electric pump
electric pump
electric submersible pump
submersible pump
gaskets
pump test
sound level limiter
Electromechanical assembly in B10 bronze, for submerged operation. Seal set comprising 2 (two) silicon carbide mechanical seals with oil lubrication. Oil bath motor.
Suitable for treating chemically aggressive strained liquids, dyes and seawater. Can be used for applications in the tanning industry and the shipping sector.
- Cooling jacket: Not applicable (00)
- Case: Bronze (69)
- Nuts and bolts: Stainless Steel - Class A2-70 (42)
- Shaft: Stainless Steel - AISI 316 (25)
- Standard gasket: Rubber - VITON (78)
- Set of standard mechanical seals: Two Silicon carbide mechanical seals (SiC)
- Cutter material: Not applicable (99-NA)
- Maximum acoustic pressure: 70 dB
- Maximum immersion depth: 20 m
- Maximum operating temperature: 40 °C
- max starts per hour: 20
- Density of treated fluid: 1 Kg/dm³
- PH of treated fluid: 5 to 10 pH
- Viscosity of treated fluid: 1 mm²/s
