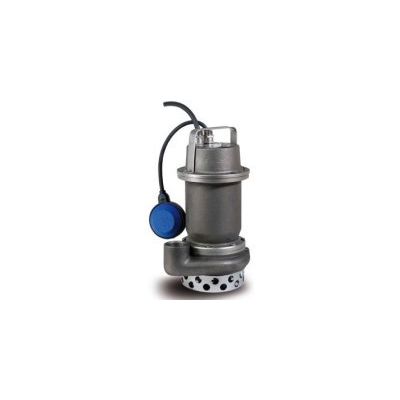

Zenit - Model DRX -Special Alloy Submersible Electric Pumps
Designed for the treatment of strongly corrosive or chemically aggressive liquids, especially in the chemical industry, this unit is for a specific industrial application. General features : deliveries GAS 1`1/4 - 2`, motor poles 2, passages 10 mm, powers 0,37 ÷ 1,5 kw, special alloy pumps.
Most popular related searches
submersible electric pump
electric pump
electric submersible pump
submersible pump
corrosive liquid
gaskets
pump test
sound level limiter
Electromechanical assembly in CF-8M (AISI 316) stainless steel, for submerged operation. Seal set comprising 2 (two) silicon carbide mechanical seals assembled opposing and with oil lubrication. Oil bath motor.
Designed for the treatment of strongly corrosive or chemically aggressive liquids, especially in the chemical industry, this unit is for a specific industrial application.
- Cooling jacket: Not applicable (00)
- Case: Cast Stainless Steel - CF-8M (12)
- Impeller material: Stainless steel (05-AI)
- Nuts and bolts: Stainless Steel - Class A4-70 (43)
- Shaft: Stainless Steel - AISI 316 (25)
- Standard gasket: Rubber - NBR (77)
- Set of standard mechanical seals: Two Silicon carbide mechanical seals (SiC)
- Cutter material: Not applicable (99-NA)
- Maximum acoustic pressure: 70 dB
- Maximum immersion depth: 20 m
- Maximum operating temperature: 40 °C
- max starts per hour: 20
- Density of treated fluid: 1 Kg/dm³
- PH of treated fluid: 5 to 10 pH
- Viscosity of treated fluid: 1 mm²/s
