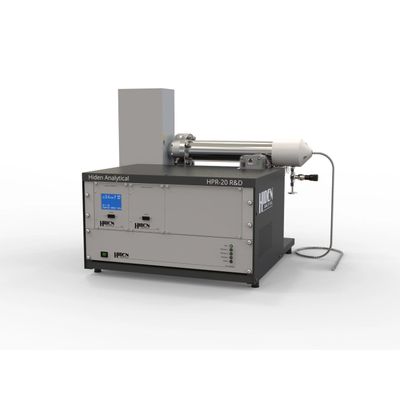

Hiden - Model HPR-20 R&D -Specialist Gas Analysis System for Advanced Research

A triple filter mass spectrometer is included providing improved resolution and abundance sensitivity with an ultimate detection limit of 5 ppb subject to spectral interference.

The HPR-20 R&D is offered with a wide range of interfaces for connection to thermal equipment and is configured with Hiden’s heated Quartz Inert Capillary (QIC) for continuous sampling of gases and vapours.

Backing and bypass pumping is provided by a high performance scroll pump. Gas sampling is continuous with a gas sample flow rate user configurable/selectable in the range < 1 ml/min to > 20 ml/min.

• Thermal Analysis TA/MS
• Catalysis
• Fuel cells
• CVD / MOCVD / ALCVD
• Environmental monitoring
• Glovebox monitoring
• Gas separation studies
• Mud logging (oil exploration)
• Near Atmospheric XPS, APXPS
