Spectral Energies - kHz-Rate Burst-Mode Laser Systems
Spectral Energies is pleased to offer their state-of-the-art Burst-Mode Laser Systems that are Master Oscillator Power Amplifier (MOPA) family of products, configurable for the simultaneous measurement of temperature, velocity, chemical species, and molecular-energy distributions at rates of 5 kHz to 1 MHz with point to planar resolution. The key to achieving high pulse energies at high repetition rates is the burst-mode architecture, as illustrated right.
Most popular related searches
laser induced fluorescence
particle image velocimetry
particle imaging
material science
pump system
velocimetry
raman
spectroscopy
laser imaging
temperature monitoring
Best of all, one laser is flexible enough to be used over a wide range of repetition rates and wavelengths. Contact us to discuss your application needs. A variety of pricing tiers are available to fit your project needs and budget.
- Direct replacement of 10-Hz Nd:YAG lasers for kHz-MHz imaging and spectroscopy
- Planar laser-induced fluorescence, laser-induced incandescence, Raman/Rayleigh imaging, particle image velocimetry
- Combustion, thermal fluids, aero-optics, plasma thrusters, chemical reaction engineering, materials science, and many others
- Compact 2’x3’ footprint for baseline system

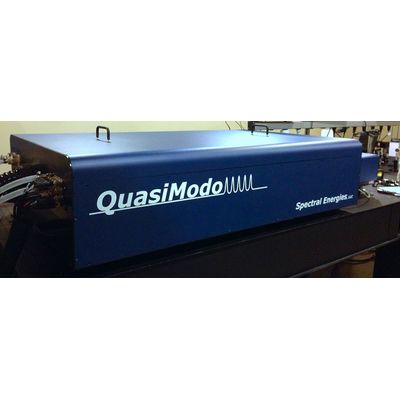

- Three models, including flashlamp (Cyclops), diode-pumped (Medusa), and hybrid flashlamp/diode-pumped (QuasiModo) systems.
- 100’s of mJ at 10 kHz, and speeds up to MHz for a wide range of applications
- Up to 1000 pulses per burst
- Sufficient pulse energy for frequency conversion using frequency doubling, tripling, quadrupling, mixing, and optical parametric oscillation.
