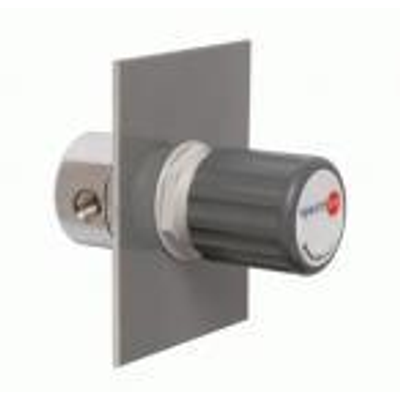

Spectrocem - Model PE51 -Panel Pressure Regulator
Stainless steel panel pressure regulator for panel and panel surface mounting. Pressure regulator with very stable outlet pressure and anti-vibration device. For corrosive, toxic gases and gas mixtures with corrosive components up to quality 6.0. 2, 4 or 6 ports for flexible and individual configuration. Suitable for inlet pressures up to 300 bar.
Most popular related searches
- Max. outlet pressures 1,5 up to 200 bar
- Metal-to-metal seal to atmosphere
- Light weight
- Compact design
- Suitable for ECD-applications
- Pressure regulator can be evacuated
- Inlet filter
- Approved for use with oxygen
- Simple outlet pressure limitation by handwheel
- Easy to install
- New laboratory-style design
- Ergonomically designed
- Type: single-stage
- Inlet pressure P1: max. 300 bar
- Outlet pressure P2: 1,5/4 bar (P1 ≤ 50 bar) 10/20/50/100/200 bar (P1 > 50 bar)
- Materials: Body regulator, relief valve: stainless steel 316L
- Valve seat: PVDF
- Diaphragm: Hastelloy C276
- Filter: sintered stainless steel 316L
- In- and outlets individual configurations
- Temperature range: -20°C to +60°C
- Leak rate: 1 x 10?8 mbar l/s He
- C?-value: 0,15
