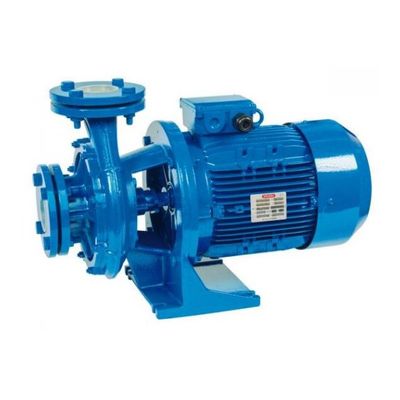

Speroni - Model MEM 40 -Monoblock Centrifugal Horizontal Pumps
FromSperoni Spa
Monoblock centrifugal horizontal pumps with single impeller. Able to pump clean water and non-aggressive liquids, in heating and conditioning systems, for civil and industrial purposes, in fire installations and for sprinkler and food irrigation plants.
Most popular related searches
centrifugal pumping
centrifugal pump
horizontal centrifugal pumping
horizontal centrifugal pump
monoblock pump
centrifuge
impeller pump
fire sprinkler
water pump
- LIMITS OF USE
- Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
- Temperature max. liquid: 90°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 mt.
- Continuous duty
- ENGINE
- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz P2 ≤ 7,5 kW
- Three-phase 400/690V-50Hz P2 > 7,5 kW
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
- Minimum Efficiency Index (BEP) MEI ≥ 0,4
- MATERIALS
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Widia/Graphite/NBR
