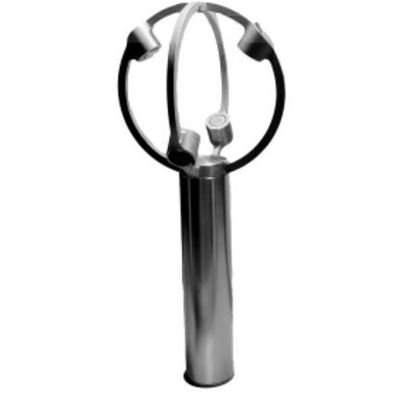

TriSonica - Model LI-560 -Sphere Wind Flux Sensor
Specifications: Size: 10.2cm x 10.2cm x 24.9cm. Measurement Path: 60mm. Weight: 225 grams. Power: 5-36VDC @ 500mW. Digital Output: RS-232, RS-422, UART-3V. Data Output Rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 25Hz, 50Hz, 100Hz. Operating Frequency: 60Hz.
Most popular related searches
Wind Speed:
- Range: 0-50 m/s
- Resolution: 0.01 m/s
- Accuracy (0-10 m/s): ±0.01 m/s*
- Accuracy (11-30 m/s): ±1 m/s
- Accuracy (31-50 m/s): ±2 m/s
Wind Direction:
- Range (U,V): 0-359°
- Range (W): ±60°
- Resolution: 1°
- Accuracy: ±1°
Temperature:
- Range: -40°C to 85°C
- Resolution: 0.01°C
- Accuracy: ±2.0°C
3D Accelerometer:
- Range (U, V, W): ±2g
- Tilt (Pitch, Roll): ±90°
- *Averaged over 10 seconds
