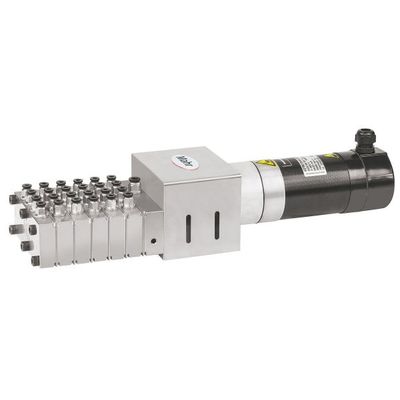

Mahr MarFin - Spin Finish Metering Pumps
Liquids like antistatic finish, adhesive additives or other additives can avoid fiber breaks or electrostatic charging during the fast spinning process. The fibers get a better elasticity as well as better properties for the further processing. MarFin meter spin finish very precisely, which ensures exact metering of each feed stream. Furthermore, MarFin pumps currently find a lot more applications to meter low-viscosity media such as water, organic solvents, perfume and oils.
The pump drive connection is available in following types:
- shaft type
Gear pump with motor
- Base frame
- Coupling
- curved tooth coupling
- magnetic coupling
- Motor
- asynchronous gear motor
- servomotor / servo gear motor
- synchronous geared motor
The drive units are designed according to the operating conditions.
Coating technologies take a significant key position in the development of new products. The various coating technologies enlarge the application possibilities of the base materials. Furthermore, a coating reduces friction, wear and corrosion. In principle, all named materials can be coated depending on the specification.
Diamond-Like Carbon (DLC) improves the properties:
- high surface hardness
- high wear protection
- smaller coefficient of friction
- better corrosion reduction to aggressive media
- higher chemical resistance / stability
- non-stick effect (reduced adhesion of polymers and other materials)
- high temperature firmness to 250°C
- excellent accuracy to size (no change of the high discharge accuracies)
- high economic efficiency through longer endurance and improvement of technological properties
- biocompatible, allows the use in the food industry and in the medical field
Sealing systems of the gear pump
- stuffing box seal
- rotary shaft seal
- magnetic coupling
ATEX directive 2014/34/EU
A version according to the Atex directive is available for the pump as well as for the drive.
Heating or cooling for the gear pump Heating or cooling can be provided electrically, as well as by the thermal fluid.
