Spin Klin - Model 2 -Compact Automatic Backflush (Stand Alone)

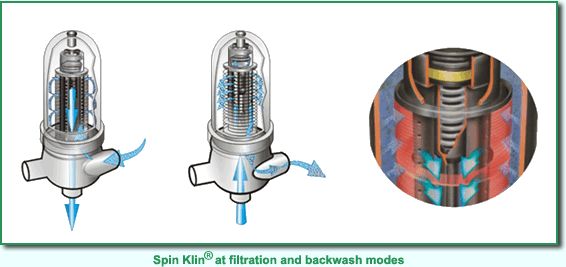

The Spin Klin discs are stacked on the Spin Klin spine. The discs are color-coded by micron size, and are assembled according to your water filtration requirements. The spine assembly has a spring compression unit and an internal piston which operate during alternate filtering or backwashing modes. The spine assembly is specially designed to compress the micron-grooved discs inside a corrosion and pressure-resistant housing. Inside the housing, a spring and the pressure difference compress the discs tightly during the filtration process, forcing the water to flow between the grooves and traps of the stacked discs.
Include the following:
- Size: 2" inlet/outlet manifold diameter
- Capacity: Small flow (35-88 GPM)
- Micron-precise filtration of solids
- Innovative filter design captures and stores large amounts of solids
- Long-term operation with little maintenance
- Easy and simple operation
- Automatic backwashing for self-cleaning
- The flushing cycle has a regulated volume, is short and environmentally friendly as it minimizes the use of flush water and automatically cleans the filter element. This saves labor and costs — minimum maintenance, and eliminates forever the need to replace filter media.
- Compact design
Activated by a pre-defined command (differential pressure or time), alternate units of the Spin Klin® system go into backwash operation. The inlet valve is shut as the drain is automatically opened.
During the backwash process, the compression spring is released and the pressure difference is eliminated. The spine piston climbs up, releasing the pressure on the discs. Tangential jets of clean water are hydraulically pumped at high pressure in the opposite direction through nozzles at the center of the spine. The discs spin free and clear, loosening the trapped solids. Solids are quickly and efficiently flushed out through the drain.
PEP guarantees reliable, accurate and efficient water filtration for years, plus full support and service — worldwide.
