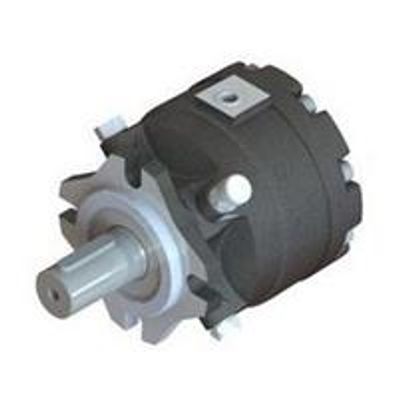

Hansa - Model BTM -Spring Loaded Disc Brakes
BTM are static brakes with hydraulic pilot pressure for opening. The braking action is obtained by a series of discs (number of discs is variable according to required brake torque) and springs acting onto the main piston. The brake housing is of spheroidal cast iron and extrusion proof seals are suitable for high pressures. The brakes are to work with hydraulic mineral oil with viscosity ISO VG 150 (15°E at 50°C); pressing oil through the "PW port, the main piston opens the discs and unlocks the main shaft.
Change oil after first 50-60 working hours and then every 500-1500 hours depending on working conditions. The BTM brakes cannot work without oil unless specific authorization of our technical department. Fill the lubrification oil in through port "O" **.
For vertical mounting specify the need of the optional elbow filling connector. HANSA-TMP can supply BTM brakes for application on various types of hydraulic motors and with different input/output shaft and flanges. For any further special version not shown in this nctictlrwittc* nloDCQ ff\r\t^r~t e\nr Tesfh Hint
- Breaking torque up to 520 Nm
- Suitable for different input / output shafts and flanges
