ProMation - Model PA(O) Series -Spring Return Actuators

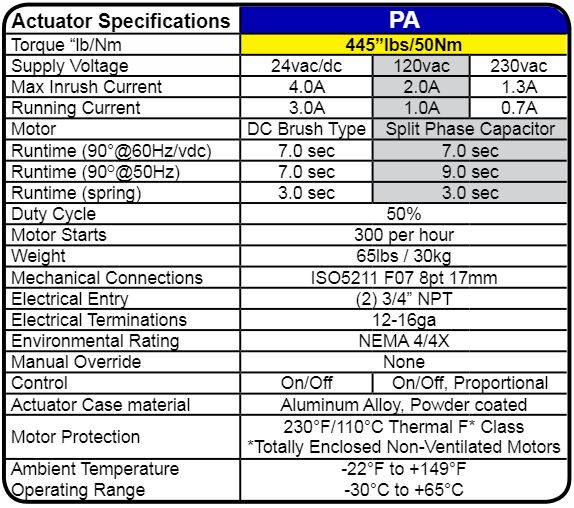

The PA(O) family of electric spring return actuators are designed for load requirements of 445 inch pounds. The actuator comes standard with two auxiliary switches (form C), an internal low power heater, a NEMA 4X environmental rating, and in 120VAC, 230VAC, or 24VAC/DC (on/off only) supply voltages. The PA(O) Series mechanical connections utilize an ISO 5211 mounting system, Size F07 with an 8 point 17 mm female drive. The PA(O) Series is offered in two control modes: on/off (2 position control), or Proportional (modulating) control. Application requirements will dictate whether to utilize a CW (clockwise spring return) or CCW (counter-clockwise spring return) model.
Spring return direction is NOT changeable and actuator must be configured for spring return direction at time of order.
