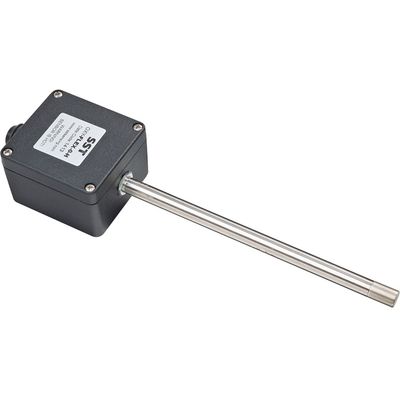

SST - Model OXY-Flex -Oxygen Analyser
The OXY-Flex Oxygen Analyzer is suitable for measuring in oxygen closed systems, such as ventilation pipes and boiler exhaust flues. The OXY-Flex Oxygen Analyzer is designed to measure the oxygen concentration in air or gas mixtures with temperatures of -100 to 400°C. The oxygen analyzer employs a well proven, small zirconium dioxide based element at its heart and due to its innovative design does not require a reference gas. The oxygen sensor element is mounted in the tip of the stainless steel probe and is protected by a sintered stainless steel cap.
The OXY-Flex Oxygen Analyzer uses a unique closed loop measurement system. While the sensor continuously measures the oxygen level, a heartbeat signal is also generated providing an immediate warning of any failures.
The OXY-Flex can be configured to output measuring ranges of 0-25% O2 or 0-100% O2. The entire measurement range is linear in both cases. The outputs can be configured to either 4-20mA and 0-10Vdc outputs or an RS232 serial communications interface.
Typical applications include; combustion control of industrial boilers, burning oil, gas, coal or biomass; incubators; composting probes and welding equipment.
- Configurable outputs: 4-20 mA and 0...10 V DC or RS232 comms interface
- Cycling 3.3 V DC logic output allows direct monitoring of the O2 sensor for diagnostic purposes
- Can be calibrated in normal air, 20.7 % O2, or in any other known O2 concentration
- Selectable output filtering allows fast and dynamic or slow and stable output
- Externally triggered automatic or manual calibration
- Sample temperature from -100 °C / -148 °F to +400 °C / 750 °F
- IP66 certified enclosure in either Aluminum or Stainless Steel
- Certified CE, UKCA, ISO9001
- Configurable outputs: 4-20 mA and 0...10 V DC or RS232 comms interface
- Cycling 3.3 V DC logic output allows direct monitoring of the O2 sensor for diagnostic purposes
- Can be calibrated in normal air, 20.7 % O2, or in any other known O2 concentration
- Selectable output filtering allows fast and dynamic or slow and stable output
- Externally triggered automatic or manual calibration
- Sample temperature from -100 °C / -148 °F to +400 °C / 750 °F
- IP66 certified enclosure in either aluminum or stainless-steel
- Certified CE, UKCA, ISO9001
Supply Voltage:24 V DC, ±10 %
- Supply Current: <1A Operating @ 24 V DC / <2A Start-up @ 24 V DC
- Analog Outputs: 0...10 V DC, 4...20 mA
- Comms Output: RS232
- Technology:Zirconia
- Gas: Oxygen
- Measurement Range: 0.1...25 % or 0.1...100 %
- Output Resolution: 0.01 V, 0.01 mA or 0.01 % O2
- Accuracy: (0-25%) < 0.5 % O2
- Accuracy: (0-100%) < 1 % O2
- Response Time: (T10-90) < 15 seconds
- Repeatability; < 0.5 %
- Sample Flow Rate: 0...10 m/sec
- Sample Flow Effect: (calibrated @ 0.5 l/min) ±0.1 % O2 (0 to 1 l/min)
- Sample Pressure: Atmospheric*
- Sample Temperature: Up to + 400 °C
- Background Gas: Air, N2, CO2, Ar or combustion gas
