Stevens - Model Style E -Staff Gage

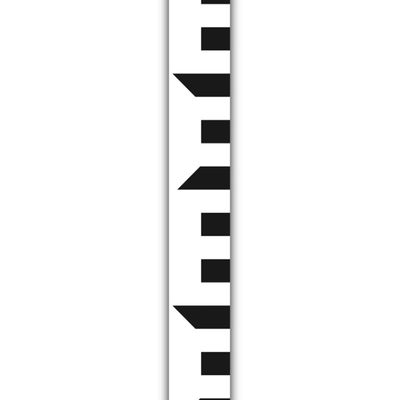

Style E staff gages feature graduated marks every tenth of a foot. Each section is 3.5 inches wide, and is available in 1, 2, or 5 foot tall sections. Style E is not numbered, so figure plates are available for applications that require numbers.The Staff Gage has a long history of providing a direct visual indicator for determining water level. Stevens staff gages are designed for easy mounting to a wall or pier, with heavy metal grommets and a 0.188 inch opening for screws or nails.
Each gage consists of a metal core, coated with porcelain enamel and marked with accurate measurement markings at specific intervals. The metal core is heavy 16 gauge (0.075 in / 1.9 mm) iron, which is completely covered with a baked-on porcelain enamel finish to resist rust or discoloration. Different colors of enamel are used to provide the markings; typically black numbers on a white background. Stevens staff gages are designed for years of trouble-free use, and can be easily cleaned.
Custom Staff Gages - a unique service offered by Stevens Water!
Stevens designs and provides custom staff gages for applications requiring larger displays, unique mounting angles, slopes or visual flow measurements.
- Time-proven basic visual reference of water level measurement
- Easy to see and read
- Available in many standard sizes (english or metric)
- Custom scales, sizes and colors available
- Pre-numbered or “build your own” options
- Rugged and durable weather resistant design
- Rivers, lakes, streams, dams and reservoirs
- Wastewater treatment plants
- Flumes and weirs
- Visual fl ow measurement
- Tanks
