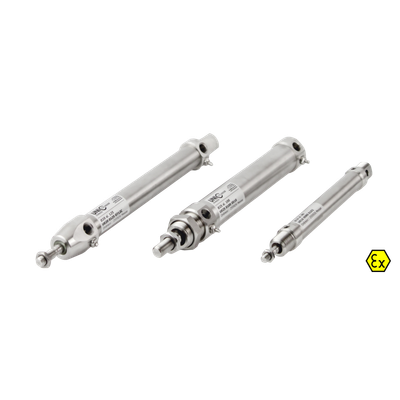

UNIC Stainless Cylinder - Model Ø12-Ø25 DIN/ISO 6432 -Stainless Steel Cylinders

The standard UNIC Stainless Cylinder conforms to the DIN/ISO 6432 specification, featuring diameters ranging from Ø12 to Ø25 mm. These cylinders incorporate a permanent magnet and come with end stroke-cushioning, with the Ø25 variant offering adjustable end stroke-cushioning. Built for robust performance, these cylinders are fitted with nitrile rubber (NBR) or polyurethane (PU) packings and a POM piston. They can withstand maximum pressures up to 10 bar and operate effectively within a temperature range of -20°C to +80°C. Designed with a standard stroke length between 10 and 500 mm, these units are constructed from AISI 316L stainless steel, providing benefits such as chemical resistance and heat resistance. Optional features include ATEX certification, a variety of mounting options, and custom adaptations. Replacement kits are available to facilitate easy maintenance.
