Skim-pak - Model 4000 Series -Stainless Steel Flow - Control and Floating Fixed Weir Surface Skimmer Systems

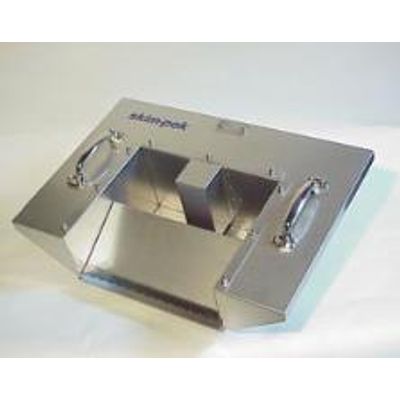

The skim-pak series 4000 skimmers are rugged, compact and portable for operation in tanks, lagoons, ponds, lakes, rivers and harbors. Capable of fitting through any 24” access, the Series 4000 skimmers utilize a unique self adjusting flow control eliminating manual adjustments. This unique flow control will recover more oil and less water, resulting in higher overall recovery rates and lower clean up costs. For complete clean-up and recovery systems, skim-pak skimmers can be combined with tested accessories.
skim-pak series 4000 is also designed for operations such as:
- Sumps up to 20 x 20 feet
- Storage Tanks up to 20,000 gallons
- Equalization Tanks
- Settling Ponds
- Oil/Water Separators
- Waste Water Intake, Treatment and Discharge
- Lift Stations
- Oil and other VOC Spill Recovery
- Surface Water Pollution Control and Remediation
- Leachate Ponds
- Control Wands - 2” PVC or high temp hose with cam lock quick disconnects
- Hose Floats - Vinyl or Stainless Steel
- Debris Screen - PVC Coated Aluminum or Stainless Steel
- Separators
- Pumps
- Containers
The skimmer is designed to remove floating product only, no underlying liquids. Oil accumulations, of any quality, are continually removed with no reoccurring costs and virtually no maintenance.
The skim-pak system will continually remove accumulation above a predetermined cap of oil and it will never recover

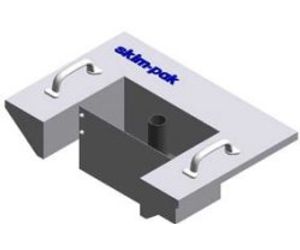

Model 4700 - SH
- Dimensions: 27” x 18.5” x 8.25”
- Weight: 24 lbs.
- Draft: 6”
- Material: 304 Stainless
- Hose Size: 2”/5.08cm
- Temperature Limit: 600°F/315°C
- Capacity: 68 GPM/257 LPM
The 4500 - SH is equipped with self adjusting flow control, the skimmer needs no adjustment for maximum recovery efficiencies. The result is a more efficient clean-up and recovery operation at lower overall costs.

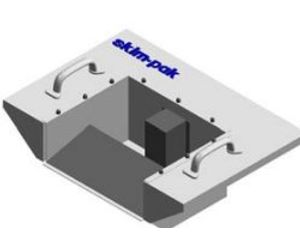

Model 4500 - SH
- Dimensions: 27” x 19” x 10”
- Weight: 31 lbs.
- Draft: 6”
- Material: 304 Stainless
- Hose Size: 2”/5.08cm
- Temperature Limit: 600°F/315°C
- Capacity: 5-68 GPM/19-257 LPM
