Qindelin - Model SS 316 -Stainless Steel Grating-Drainage Grating, Flooring for Platform

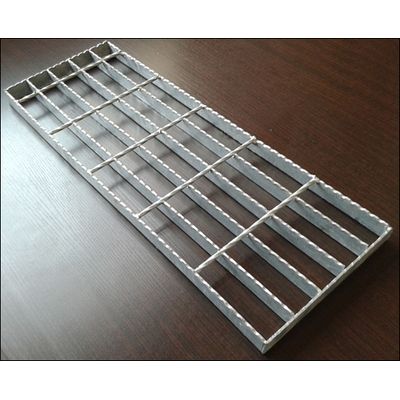

Stainless steel bar grating is made by welding or press locking available in varied bearing bar shapes and sizes, especially ideal for flooring and walkway in corrosive environments such as chemical industry, food processing, hydro processing and engineering.
Most popular related searches
Stainless Steel Gratings
- Stainless Steel 304 Grating
- Material: SS 304
- Panel width: 95mm
- Length: 1000mm
- Height: 20mm
- Distance between Each Ribs: 10mm
- Load Carry capacity: 1000Kgs
- Application: Grating for the Run of Water Drainage.
- Usage: Outdoor & Indoor use.
Stainless Steel Grating, SS 316
- Oil Field Flooring Grating:
- Grating type: Flooring grate,4` x 8`, 316l ss, pitch 25m
- Grating, type: Flooring panels,4` x 8`, 316l ss, pitch 25mm x 100mm x 5mm serrated,astm standard
- Clip: grating, 316l ss, w/m 12mm mild steel bolt, nut and washer
Description:
- #316 stainless steel grating with 1-1/2" x 1/8" bearing bars at 1-3/16" o.c. (19 - SGSS-4) 36" wide x 24` long.
- #316 stainless steel grating with 1" x 3/16" bearing bars at 1-3/16" o.c. (19 - SGSS-4) 36" wide x 24` long.
- #316 saddle clips for the grating.
- Grating to be swaged
- Grating to have a mill finish
- All grating to have a smooth top
