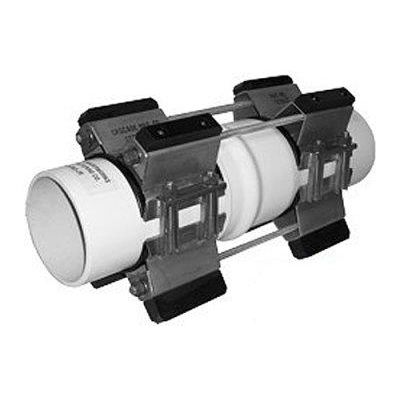

Cascade - Model CCS-JR Series -Stainless Steel Joint Restraint Casing Spacer

The runners shall be mechanically bolted to the riser. The bolt heads are welded to the inside of the risers for strength.

Risers shall be made of T-304 stainless steel of a maximum 10 gauge. All risers shall have a bolting plate MIG welded to the face of the riser for the connecting hardware to be attached. The connecting hardware (not included) shall be placed through the restraining hole in the bolting plate. The spacers shall be placed on the pipes(s) with the bolting plates facing away from the joint, placing the spigot side of the Restraint Joint Casing Spacer no closer to the end than the Home line and the bell side of the Restraint Joint Casing Spacer at the edge of the bell. All risers shall be MIG welded to the shell. Bottom risers 6" and over in height shall be reinforced. All reinforcing plates shall be 10 ga. T-304 stainless steel and shall be MIG welded to mating parts. Standard positioning within the casing pipe shall be sized such that the carrier rests near the bottom of the casing pipe and the height of the risers and runners are to provide a bottom clearance not less than one-half inch between the casing pipe and the extreme outside diameter of the joint (bell, seam weld, joint clamp) of the carrier pipe. Centered & Restrained positioning within the casing pipe shall be sized such that the height of the risers and runners are to center the carrier pipe in the casing pipe with a top clearance of three-fourths inch minimum. Restrained positioning within the casing pipe shall be sized such that the carrier rests near the bottom of the casing pipe and the height of the risers and runners are to provide a bottom clearance not less than onehalf inch between the casing pipe and the extreme outside diameter of the joint (bell, seam weld, joint clamp) of the carrier pipe and a top clearance of three-fourths inch minimum. All welds and metal surfaces shall be chemically passivated. Due to the numerous application possibilities, consult factory for spacing requirements. Casing spacers shall be Model CCS-JR as manufactured by Cascade Waterworks Mfg. Co. of Yorkville, IL or approved equal.

• AC
• DI
• HDPE
• Plastic
• Steel & Other

• Restrains Push Joints in ALL Types of Pipes
• Simple to Use - Trouble-free Installation
• Prevent “Over-Belling”
• Fewer Components *
• Corrosion Resistant Materials
• All Welds and Metal Surfaces are Chemically Passivated
• Eliminates the need for the Typical Joint Restraints
• A Casing Spacer & Joint Restraint - All In One
