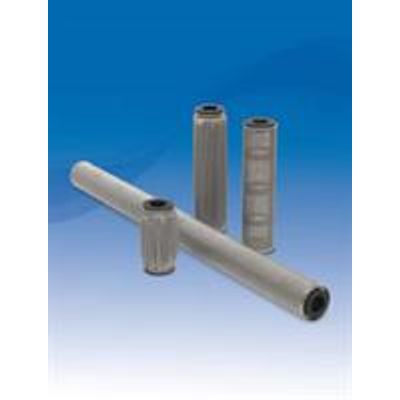

Shelco MicroSentry - Model SS Series -Stainless Steel Liquid Filter Cartridges

• Ideal for high temperature applications up to 500°F (260°C) and high differential pressures up to 60 PSID
• 304L and 316L Stainless Steel construction for compatibility with a wide range of fluids
• 2 through 840 microns ratings for broad range of uses from fine filtration to straining
• Available in cylindrical and pleated configurations for cost effective and extra service life requirements
• Cleanable and reusable
• All welded construction provides highest mechanical strength cartridges
• End cap configurations available in DOE, 222/Flat, 226/Flat, 1" MNPT or 1" FNPT fittings

• High Temperature
• High Differential Pressures
• Viscous Fluids
• Corrosive Liquids and Gases
• Caustic Fluids
• Plating Solutions
• Straining
• Hydraulic Oils
• Petrochemicals
• Photo Solutions
• Magnetic Coatings
• Process Water
• Wastewater
• Chemical Solutions

Pore Sizes

• 2, 5, 10, 20, 40, 75, 100, 120,150, 190, 230, 280, 370, 540, 840 microns

Nominal Lengths

• 4 7/8", 9 3/4", 9 7/8", 10", 19 1/2", 20", 29 1/4", 30", 40"

Diameters:

• Outside: 2 1/2" (Cylindrical), 2 5/8" (Pleated)
• Inside: 1 1/16"

Gaskets/ O-rings

• Buna, EPR, Teflon, Viton

Materials of Construction

• 304L or 316L Stainless Steel

Maximum Temperature

• 500˚F (260˚C)

Maximum Change-out Differential Pressure

• 60 psid (4.2 bar)

End Cap Configurations

• DOE, 222/flat, 226/flat, 1" MNPT, 1" FNPT

Options

• Pleat protector to prevent denting and damage to surface
• Heavy duty core (300 psi)
