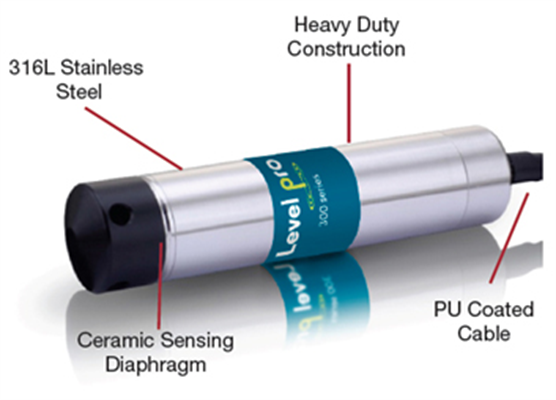

Levelpro - Model 300 Series -Stainless Steel Pressure Transmitter
The Stainless Steel 300 Series Pressure Transmitter is Designed for Continuous Level Measurement in Water/ Waste Water, Fuel, Oils, Solvents
Most popular related searches
pressure transmitter
continuous level monitoring
corrugated pipe
level monitoring
booster station
level sensor
pressure monitoring
sewage pump
waste treatment
water treatment
- Small Footprint – Compact Design
- ?Small Thermal Effect
- ?Excellent Accuracy
- ?Excellent Long Term Stability
- ?Heavy Duty Design
- ?No Moving Parts
- ?Automated Temp Compensation
- ?Cable Protection Via Corrugated Pipe Option
- ?Different Heavy Duty Cable Materials Available
- ?Different Kinds of Seal Materials Available
- ?Flush Sensor – Non Clogging
- Excellent for Foam or Vapour
Pressure Measurement
- 0 … 5.8 PSI up to 0 … 33.5PSI 14 ft/H2O – 78 ft/H2O
Output signals
- 2 wire: 4-20 mA
Water/Filtrated Sewage
- Pump and Booster Stations
- Water Treatment
- Waste Treatment
- Waste Sumps
- Fuel Storage
- Tank Farm
- Oil Tanks
