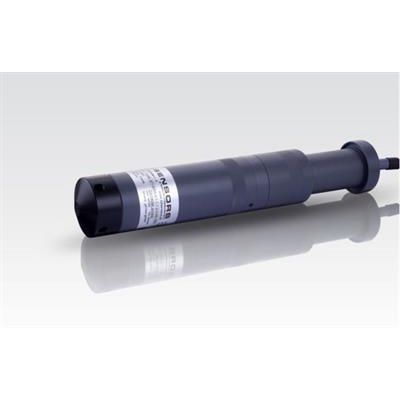

BD|SensorsModel LMP 808 -Stainless Steel Sensor and Separable Plastic Probe

SHARE

The separable plastic probe is designed for level measurement of water, waste water as well as fuels and oils. Basic element is a piezoresistive stainless steel sensor. In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembl with a connector and can be changed easily.

Most popular related searches
  • nominal pressure: 0 ... 1 mH2O up to 0 ... 100 mH2O
  • accuracy: 0,25 % / 0.35 % FSO
  • diameter 35 mm
  • cable and sensor section separable
  • excellent linearity
  • small thermal effect
  • SIL 2 (safety integrity level)
    according to IEC 61508 / 61511
  • mounting accessoires as screw fitting and terminal clamp of stainless steel
  • different kinds of cable and elastomeres
  • customer specific versions e.g. special pressure ranges
  • energy industry
  • environmental industry
  • fuels and oils
  • water
