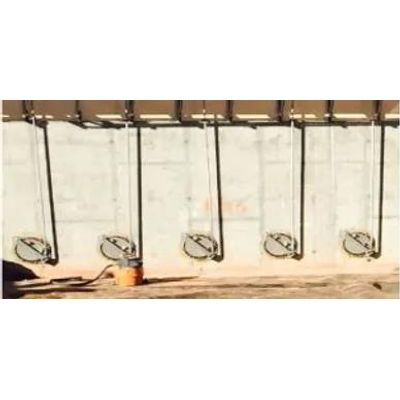

RW - Stainless Steel Shear Gates
FromRW Gate Company
Leakage for the shear gates shall be restricted to 0.1 gpm/ft or less of the seal perimeter at the design seating head and unseating head. Shear gates shall be designed to be suitable for the application and designed to handle 10-ft of seating head and 10-ft of unseating head as a minimum.
Most popular related searches
GENERAL
- The hand-pull shear gates shall be provided as specified and as shown in the Contract Documents.
SUBMITTALS
- Submittals shall include, at a minimum, detailed custom drawings of the gate assembly with dimensional and mounting information and a listing of the materials of construction. General arrangement drawings and cut sheets are not considered acceptable drawings.
QUALITY ASSURANCE
- The basis for the design of the shear gates is the Model RW7400-S as manufactured by RW Gate Company, Troy, NY.
- All gates shall be shop inspected for proper operation prior to shipment.
- Welds shall be performed by welders with ASME Section IX certification.
- The gate manufacturer shall be ISO 9001:2015 certified.
MATERIALS OF CONSTRUCTION
- All stainless steel referenced in this specification shall be Type (304)(316) or Type (304L)(316L), ASTM A240 or ASTM A276 unless otherwise indicated herein.
- All welded stainless steel components shall be constructed of Type (304L)(316L) stainless steel.
- All structural stainless steel used in the construction of slide plates and frames shall have a minimum material thickness of 3/16-inch.
- All non-welded stainless steel components, excluding anchor bolts and assembly bolts, shall be Type (304)(316) or Type (304L)(316L) stainless steel.
- Anchor bolts and assembly bolts shall be Type 316 stainless steel.
