Fontaine-Aquanox - Model 20 Series -Stainless Steel Slide Gate

SHARE

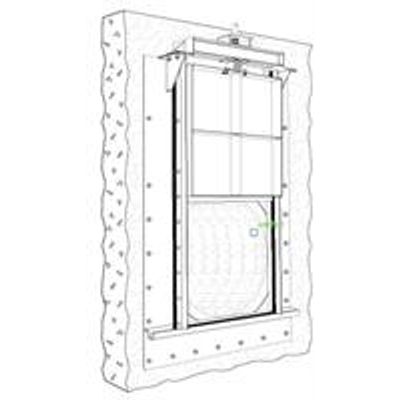

Fontaine-Aquanox’s SERIES 20 Sluice Gate is a highly versatile flow control gate with various types of mountings. Adaptable to different applications, the SERIES 20 can be designed to the required seating and unseating heads. The seal design keeps the allowable leakage rate to 0.04 U.S. gpm per foot (0.50 l/min per meter) of seating perimeter.

Most popular related searches
stainless slide gate
steel slide gate
sluice gate
AWWA standard
lifting device
water gate
AWWA C561
control gate
flow control
slide gate

Stainless Steel ConstructionAWWA Standards
Because of its stainless steel construction, the SERIES 20 has high corrosion and erosion resistance, and can be operated for many years with minimum maintenance. Stainless steel provides virtually limitless design flexibility. The result is a lighter weight and easier-to-install gate.

AWWA Standards
SERIES 20 Sluice Gates are built to meet or exceed AWWA C561 latest revision standards pertaining to design safety factors, stem and stem guides positioning, manual lifting devices,leakage, etc. As specified in the AWWA standard, all Fontaine-Aquanox SERIES 20 water gates are tested for leakage and operation before shipping.
