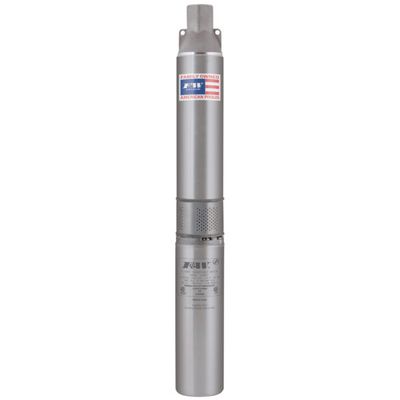

Flint Walling Commander - Model S Series -Stainless Steel Well Submersible
FromFlint & Walling
Our Stainless Steel Commander S Series exemplifies our dedication to top-tier water system performance. Featuring a stainless steel pump shell, hex drive shaft, coupling, and screen, our pump is engineered for durability. The NEMA standard motor mounting ring ensures easy installation and reliability in every application. Available in motor sizes ranging from ½ to 2 HP, with Flint & Walling motors for 1 PH pumps, and compatible with NEMA standard stainless steel motor brackets.
Most popular related searches
Featuring a stainless steel pump shell, hex drive shaft, coupling, and screen, our pump is engineered for durability.
- Stainless steel pump shell
- Stainless steel hex drive shaft and coupling
- Stainless steel screen
- NEMA standard motor mounting ring
- View More Details
- Discharge head: stainless steel, 1¼” NPT, safety rope eyelet included
- Check valve poppet: internal removable, with elastomer sealing ring
- Top bearing: closed, sintered, lead-free sleeve bearing
- Pump shell: heavy-wall stainless steel
- Cable guard: stainless steel
- Staging*: Noryl® impellers and diffusers; stainless steel floating bearing inserts and acetal diffuser plates
- Pump shaft*: stainless steel hex shaft with one piece motor-to-shaft coupling
- Motor bracket: NEMA standard, stainless steel with stainless steel suction screen
- Motor: ½ thru 2 HP, 1 PH pumps feature Flint & Walling motors.
- Motor controls: control boxes required for three-wire, 1 Ph motors. Order controls separately.
- 1 year limited warranty
- Motor: 1/2-5 HP
- Hertz: 60 Hz
- RPM: 3450 RPM
- Discharge Size: 1-1/4″ NPT
- Flow: 5, 7, 10, 15, 19, 27 GPM (26, 38, 57, 72, 102 LPM)
- Impeller Type: Noryl® impellers and diffusers
