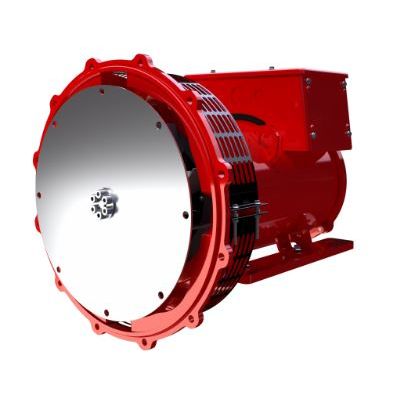

STAMFORDModel S0 -Alternator

SHARE

The STAMFORD S0 alternator is engineered with the customer in mind. The S0 alternator is built to be user friendly with 20% quicker assembly time, adaptable feet for zero customer re-engineering, compact size and weight and guaranteed STAMFORD quality. S0 alternators have voltage output of 300-600V and power range from 7.5kVA up to 30kVA for 400V/50Hz class H rating. The S0 has the option of auxiliary winding to improve motor staring and sustained short circuit capability.

Most popular related searches
  • 50Hz Continuous (kVA) : 30
  • 60Hz Continuous (kVA)  : 36
  • Voltage Designation : Low
  • Voltage Range : 380-600
  • AVR : AS540
  • Poles : 4
  • Winding Pitch : 2/3
  • Ingress Protection : IP23
  • Material Insulation Class : H
  • Excitation System : Self-Exciting
  • 1 phase re-connectable
  • Epoxy gel coat
  • Anti-Condensation Heaters
  • Auxiliary Winding on S0L2 models
