Acker - Standard Split Tube Soil Sampler

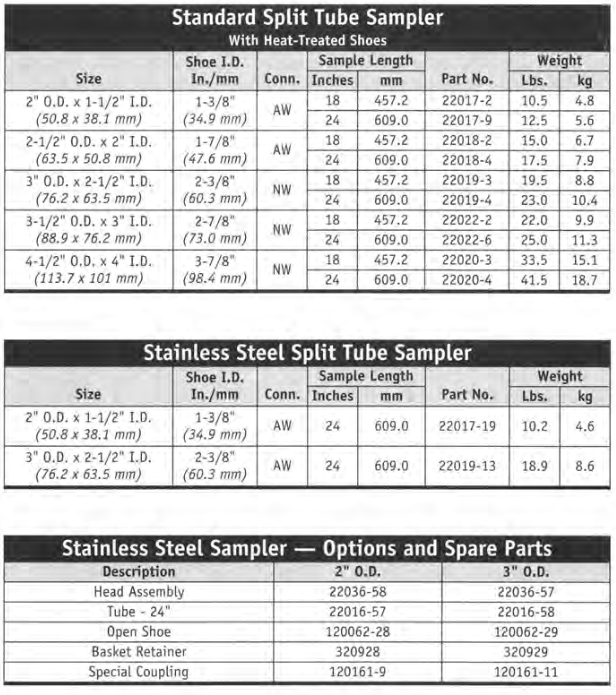

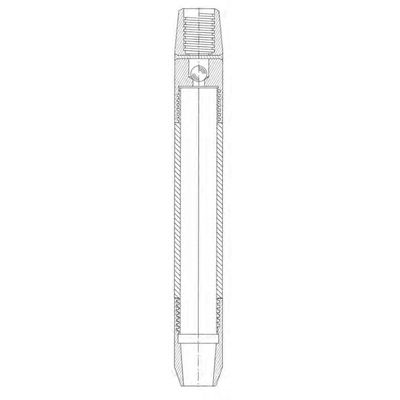

This split tube sampler is designed for taking soil samples at the bottom of the cleaned bore hole by the drive weight method. The split section is held together with a ball check head and a hardened steel drive shoe. The ball check feature in the head prevents samples from being washed out of sampler upon withdrawal from the hole. The sampler is designed to accommodate a brass, plastic or paper tube liner for collecting and carrying samples to the field office. Two sample lengths are available. Note steps in tube design...Acker`s Heat Treated Drive Shoe is recessed to accommodate various accessories.
