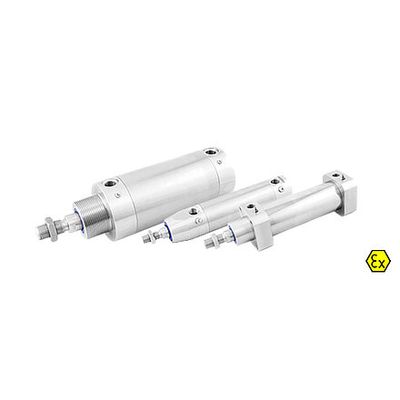

UNIC Stainless Cylinder - Model Ø32 - Ø125 mm. DIN/ISO 15552 -Standard Stainless Cylinder

The Standard UNIC Stainless Cylinder, compliant with DIN/ISO 15552, is engineered with precision and durability for industrial applications requiring robust pneumatic solutions. It features a diameter range from Ø32 to Ø125 mm, embracing a design that integrates a permanent magnet and adjustable end stroke cushioning to enhance operational efficiency. Constructed with nitrile rubber (NBR) or polyurethane (PU) packings and a POM piston, it is capable of withstanding a maximum pressure of 10 bar and operates within a temperature range of -20°C to +80°C. Its standard stroke ranges from 10 to 500 mm, providing extensive customization options like AISI 316L enhancements and ATEX certification. Specific variants offer chemical resistance, heat resilience, and integrated adapters for versatile industrial employment. Complementing its robustness, renovation and repair kits are available to ensure prolonged service life.
