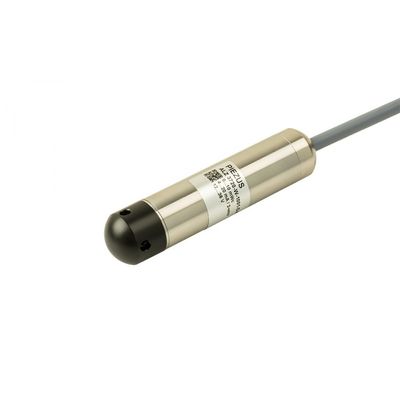

PIEZUS - Model ALZ 3720 -Standard submersible pressure transmitter
FromPIEZUS LLC
ALZ 3720 is a general purpose submersible hydrostatic level transmitter. High quality silicon piezoresistive sensor, robust stainless steel housing and a hydrometric cable with the ventilation tube make APZ 3720 reliable and cost effective solution for a wide variety of industrial level measurement applications.Most popular related searches
Pt100 temperature sensor
hydrostatic level transmitter
submersible pressure transmitter
level monitoring
submersible level transmitter
temperature sensor
hydrostatic level
level transmitter
pressure transmitter
silicon sensor
Ranges: 1 mH2O up to 250 mH2O
Basic accuracy: ±0.25%
Probe: Ø27 mm, AISI 316L stainless steel
Outputs: 4...20 mA; 0...20 mA; 0...10 V; 0...5 V; RS-485/Modbus RTU
Sensor: silicon piezoresistive
Media temperatures: -20…+70 °C
Optional: Ex ia, HART, Pt100 temperature sensor"
Water, wastewater
Fuels, oils
Tanks, wells
Pump protection
