Stanlay - Model Ctrack -Pipetraker Traceable Maxi Duct Rodde

SHARE

CTRAK Pipetraker Traceable Maxi Duct Rodder is an ideal accessory for utilization with pipe & cable locators, to EXTEND the capability of the locating equipment’s to identify location & route of buried nonmetallic ducts or telecom pipes.  The PipeTraker Traceable Maxi Duct rodder is based on a sturdy composite fiberglass rod of 9mm dia with a built in 1mm copper wire that is rigid yet flexible enough to guide into nonmetallic HDPE ducts, plastic pipes and metal pipes up to lengths of 300 meters / 1000 feet.

Most popular related searches
underground utility locating system
copper wire
utility locating system
underground utility locating
locating system
cable locating
plastic pipe
utility locating
plastic piping
underground utility

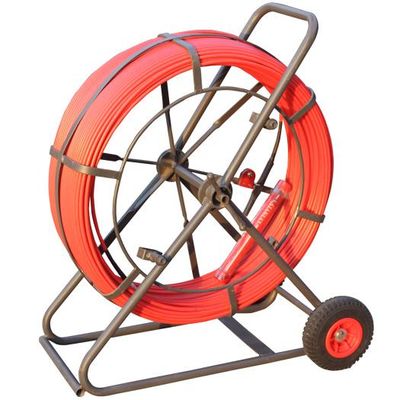

The CTRAK traceable duct rodder is provided in a galvanized metal tube frame with an integral brake and wheels. The base of the traceable rod contains a terminal that provides a connection to the inbuilt copper tracer wire of the duct rodder. The traceable rodder when energized with a frequency excites the full length of the rodder to enable trace the buried pipe.

Use any Digital Pipe & cable locating receiver to trace the route of the Pipe. Available in two length options: 200m/650feet and 300m/1000feet.

See the CTRAK Product video for an animated description of how to use the CTRAK traceable rodder to trace nonmetallic pipes.

  • STEP 1: Insert rod into manhole and push into metallic or non metallic pipe /duct which is to be route traced.
  • STEP 2: The terminal box of the PipeTraker provides the connection to the inbuilt copper trace wire of the duct rodder.
  • STEP 3: Energise the traceable duct rodder with any frequency such as 8/ 16/33/64 /80 KHz etc using any signal excitor/ transmitter.
  • STEP 4: Trace route, depth or blockage points of underground conduit with precision using any digital or analog receiver.
  • Length Options: 150m, 200m, or 300m:
  • Dimension:
    • 33"x20"x37" Maxi Frame "B" Type for 120~200m
    • 43"x20"x44" Super Maxi Frame "A" Type for 300 m frame
  • Rod Dia: 9.0mm (Nominal)
  • Size of Copper Wire: 1mm Dia.
  • Item Code:
    • ST-CTRAK 150 for 150m, ST-CTRAK 200 for 200m &
    • ST-CTRAK 300 for 300m.
