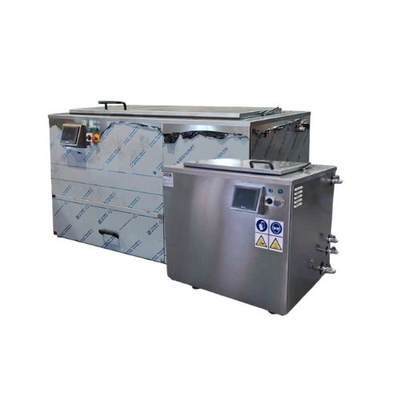

DCM - Model SL Series -Static Ultrasonic Cleaning Machine

WHY CHOOSE DCM ULTRASONIC MACHINES?

• Overflow: 3/4" overflow connected to the customer's installation to avoid possible product spills in case of excessive liquid level.
• Integrated electrical panel: Integrated electrical panel with easy access to maintenance that makes the machine more compact and allows it to be installed close to the walls.
• Double-layer thermal-acoustic insulation: 50mm thick double-layer thermal and acoustic insulation (fireproof) that reduces noise emission while preventing heat loss and making the machine more environmentally friendly.
• Integrated construction in AISI 304 / 316 stainless steel: The machine is entirely built in AISI 304 stainless steel and submersibles in AISI 316L. Optionally it can be built in AISI 316L.
• Daily ECO mode: Heating programming in ECO mode that allows the temperature to be maintained throughout the night with minimal energy costs.
• Oil separator: Oil separation system using laminar flow, consisting of a pump with an AISI 316L stainless steel body that removes the oil from the surface, preventing the parts from staining when leaving.
• V-Shape: V-shaped tank bottom that makes it easier to clean the tank and remove sludge.
• Double welding system: Double internal and external welding of the entire tank that ensures maximum tightness and reliability of the tank.
• Electrical resistances on the sides: Stainless steel electrical resistance located on the sides of the tank away from the bottom to prevent premature breakage due to sludge accumulation at the bottom.
• Ultra-compact size: Ultra-compact design that allows the installation of the tank in very small spaces.
• Integrated light beacon: Integrated light signaling beacon that allows you to know the status of the machine at all times even without being in its vicinity.
• Heavy Duty: The robust construction of the DCM ultrasonic equipment makes our machines the ones that lift the most weight on the market, being able to clean really heavy loads.

Static charge ultrasonic cleaning machines are an efficient and versatile solution for cleaning, degreasing, pickling, disinfecting and descaling a wide variety of materials, including metals, plastics, glass and ceramics. In this type of system, the parts remain stationary within the tank during the cleaning process, allowing for uniform and controlled cavitation.

• Uniform cleaning process without mechanical wear: Since there is no mechanical movement in the load, the ultrasonic waves are distributed homogeneously in the cleaning liquid, generating a stable cavitation that effectively removes oils, greases, oxides, machining residues and biological contaminants without causing wear on the parts.
• Greater precision in the cleaning of delicate components: This type of machine is ideal for fragile or high-precision parts, such as electronic components, medical instruments and tight-tolerance mechanical parts. The absence of movement prevents possible mechanical damage and guarantees deep cleaning without affecting the integrity of the materials.
• Lower energy consumption and simple operation: Static charge machines have a simpler structure and optimized energy consumption, since they do not require additional agitation or movement systems. Their design allows efficient operation with low maintenance, which reduces operating costs and facilitates their integration into various industrial environments.
• High compatibility with different liquids and detergents: This type of equipment allows the use of a wide range of cleaning solutions, from industrial degreasers to disinfecting agents or chemical stripping solutions, optimizing the process for each application without affecting the efficiency of cavitation.
