Tri-Pak - Model T-20X Series -Stationary Compactor

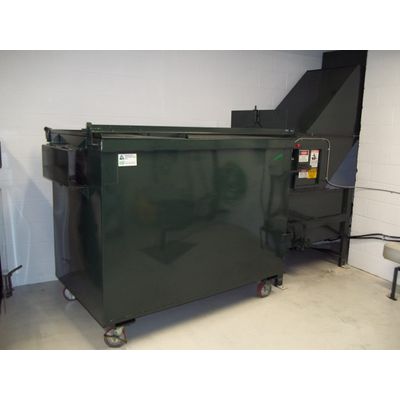

The T-20X stationary compactor has been specifically engineered to be used in multi-unit residential buildings and can be placed under a trash chute or used as a free standing system. It can be coupled with front-end containers or rear packer containers and will accept containers ranging in size from 1.5 to 4 cubic yards. The unit is available as a manually operated unit or when placed under a chute it can be supplied as a fully automated unit that will cycle unattended 24/7. It can also be used with our “tri-sorter and bi-sorter” head assemblies when the waste stream needs to be sorted.
Most popular related searches
stationary compactor
odor control system
OSHA regulations
OSHA regulated
emergency stop
current sensor
waste stream
pressure gauge
odor control
emergency stop buttons
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
- Advance-warning light
- Fluid-filled pressure gauge
- Oil heater
- Odour control system
- Open hopper (for top or dock loading)
- Remote trouble/fill light
- Sorter system
- Charge Chamber Volume : 0.25
- Charge Chamber Opening Size : 27″ x 25″
- Ram Face Size : 27″ x 15″
- Ram Penetration : 5″
- Compaction Force Normal : 19,625 lbs
- Compaction Force Maximum : 23,550 lbs
- Cycle Time : 25 seconds
- System Pressure Normal : 2000 psi
- System Pressure Maximum : 2200 psi
- Pump Capacity : 2 gpm
- Motor Size : 1 hp
- Cylinder Size : 2 x 2.5″
- Cylinder Type : Double Acting
- Ram Face Pressure Normal : 48.5 psi
- Ram Face Pressure Maximum : 58.1 psi
- Oil Tank Capacity : 5 gal
- Shipping Weight : 950 lbs
- Control System : 110 volt 60 cycle powered by step-down transformer
- Control Panel : Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, current sensor
- Power : 115 volt, single phase
