Komptech - Model Flowerdisc -Stationary Disc Screen

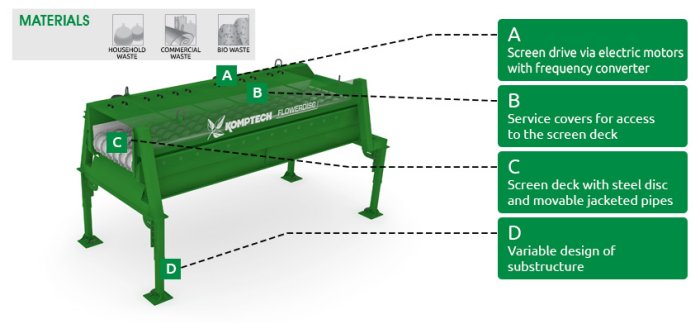

The Flowerdisc represents a further technology for the screening of pre-shredded commercial, bulky and bio-waste, a technology which combines high throughput, selectivity and resistance to contamination. Material is transported by shafts with rugged steel discs working on the disc screen principle. Movable jacketed pipes positioned between the discs prevent seizures and blockages by contraries.
- Designed for separation of oversized particles from commercial waste, bulky waste, household waste and fresh bio-waste
- High throughput, low energy expenditure • Sturdy design allows smooth, low-wear operation
- Modular design for flexible configuration in stationary systems
DRIVE (standard design)
Power (kW): 11
SCREEN UNIT
Length x Width (mm): 4560 or 6080 x 1200
SCREEN SECTIONS
FD 80 (mm): 80 - 100
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 100
Machine type: Flowerdisc
Application: Commercial waste
Throughput: 95 m3/h

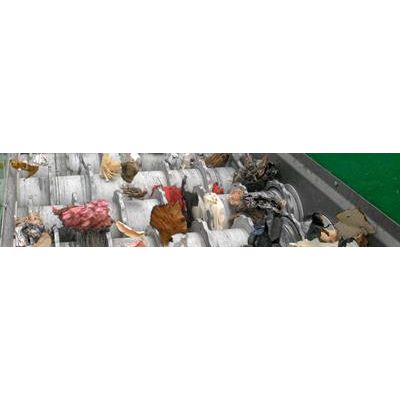

The Flowerdisc separates shredded commercial waste into large and small grain. The screen cut and throughput can be changed by adjusting the shaft speed. The shafts have flower shaped steel discs (“Flowerdisc“) that provide efficient transport. Between them are large diameter steel bushings that prevent wraparounds.
