Komptech - Model Ballistor -Stationary For Better Separation

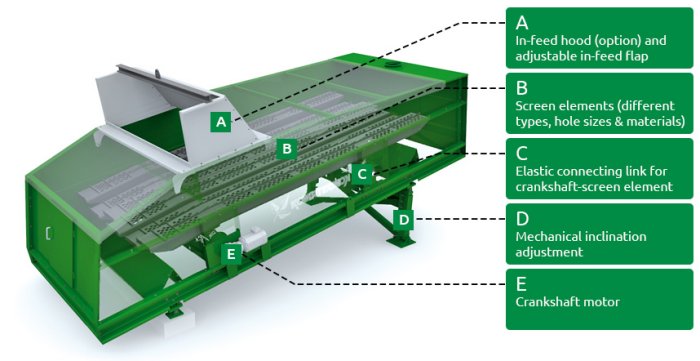

The Ballistor separates out usable fractions from waste and potential recyclables. By combining ballistic separation with screening, in just one pass-through the material stream is separated to the criteria 3/2-dimensional, rolling-cubic-rigid/flat-soft-narrow, and particle size. This means that high-caloric fractions can be separated out of commercial or household waste and further processed into RDF in one operation. Other methods like screening followed by windsifting involve a conveyor and take substantially more space and energy. The Ballistor’s long-life components, readily replaceable wear elements, and excellent maintenance access further reduce operating costs. With a choice of separation into three or four fractions, five sizes and many options, the Ballistor separator can be configured to suit the application.
- Wide range of applications - from municipal waste (household waste, commercial waste) to potential recyclables and construction and demolition waste
- High degree of selectivity with adjustable separation limit
- Efficient drive design with low power requirements
- Rugged design with long service life and low operating costs
BALLISTOR 4300 SPECS
DRIVE
Power (kW): 5,5
DIMENSIONS (mm)
Filling length: 7475
Filling width: 2400
Height without inlet cap: 1930
Transport Width (pre-assembled machine, reduction by decomposition possible): 2150
SCREEN
Number of fractions: 3
Number of screening elements: 4
Length screening elements (mm): 5600
Screening area (m²): 9,6
WEIGHT
Weight, machine only (t): 5,75
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 60
OPTIONS
Screening plates in various designs, perforation (30/50/60/80 mm) and material texture, central lubrication crankshaft bearing, automatic grease cups connecting rod bearing, fixed or manual inclination, in-feed hood, tarpaulin cover and more

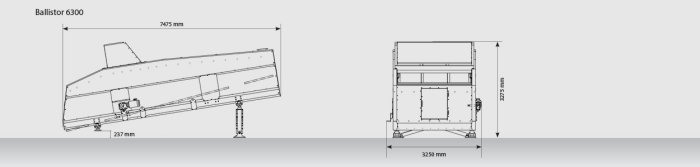

BALLISTOR 6300 SPECS
DRIVE
Power (kW): 5,5
DIMENSIONS (mm)
Filling length: 7475
Filling width: 3250
Height without inlet cap: 1930
Transport Width (pre-assembled machine, reduction by decomposition possible): 3000
SCREEN
Number of fractions: 3
Number of screening elements: 6
Length screening elements (mm): 5600
Screening area (m²): 14,4
WEIGHT
Weight, machine only (t): 7,0
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 100
OPTIONS
Screening plates in various designs, perforation (30/50/60/80 mm) and material texture, central lubrication crankshaft bearing, automatic grease cups connecting rod bearing, fixed or manual inclination, in-feed hood, tarpaulin cover and more
BALLISTOR 8300 SPECS
DRIVE
Power (kW): 5,5
DIMENSIONS (mm)
Filling length: 7475
Filling width: 4100
Height without inlet cap: 1930
Transport Width (pre-assembled machine, reduction by decomposition possible): 3940
SCREEN
Number of fractions: 3
Number of screening elements: 8
Length screening elements (mm): 5600
Screening area (m²): 19,2
WEIGHT
Weight, machine only (t): 8,5
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 130
OPTIONS
Screening plates in various designs, perforation (30/50/60/80 mm) and material texture, central lubrication crankshaft bearing, automatic grease cups connecting rod bearing, fixed or manual inclination, in-feed hood, tarpaulin cover and more
BALLISTOR 10300 SPECS
DRIVE
Power (kW): 11,0
DIMENSIONS (mm)
Filling length: 7475
Filling width: 4960
Height without inlet cap: 1930
Transport Width (pre-assembled machine, reduction by decomposition possible): 4800
SCREEN
Number of fractions: 3
Number of screening elements: 10
Length screening elements (mm): 5600
Screening area (m²): 23,9
WEIGHT
Weight, machine only (t): 9,75
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 160
OPTIONS
Screening plates in various designs, perforation (30/50/60/80 mm) and material texture, central lubrication crankshaft bearing, automatic grease cups connecting rod bearing, fixed or manual inclination, in-feed hood, tarpaulin cover and more
BALLISTOR 12300 SPECS
DRIVE
Power (kW): 11,0
DIMENSIONS (mm)
Filling length: 7475
Filling width: 5810
Height without inlet cap: 1930
Transport Width (pre-assembled machine, reduction by decomposition possible): 5650
SCREEN
Number of fractions: 3
Number of screening elements: 12
Length screening elements (mm): 5600
Screening area (m²): 28,7
WEIGHT
Weight, machine only (t): 11,0
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 200
OPTIONS
Screening plates in various designs, perforation (30/50/60/80 mm) and material texture, central lubrication crankshaft bearing, automatic grease cups connecting rod bearing, fixed or manual inclination, in-feed hood, tarpaulin cover and more
