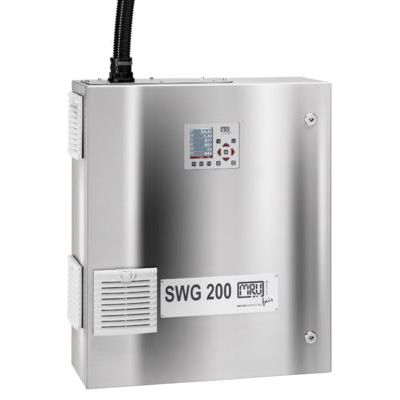

MRU - Model SWG 200 CEM -Stationary Gas Analysis System
Stationary gas analysis system for continuous process gas and emission monitoring. With SWG 200 CEM (Continuous Emission Monitoring) we offer you a cost-effective,
reliable system for emission and combustion monitoring.
Most popular related searches
gas analysis system
gas sampling probe
peltier gas cooler
analysis system
sample gas probe
gas analysis
stationary gas
sample gas pump
gas sampling pump
sample gas
Outstanding benefits:
- Use of optimized NDIR technology with improved accuracy without zero point drifts
- O2 measurement with an electrochemical or a paramagnetic sensor
- Automatic zero point in clean ambient air through separate calibration gas inlet
- Automatic calibration for up to four gas cylinders
- Double stage Peltier gas cooler with two automatic condensate pumps
- Cold/dry gas extraction at a low flow volume of 1 l/min
- Stainless steel cabinet with monitored fan ventilation
- Included dual heat exchanger Peltier gas cooler with two automatic condensate draining pumps
- Efficient sample gas filtration using PTFE sintered particulate filter
- Regulated sample gas pump with sample gas flow monitoring and alarm
- Filtration of acid gases to protect the internal sample gas flow sensor
- Solenoid valve for auto-zero with clean ambient air
- Solenoid valve for calibration gas, with aluminium fine pressure regulator at cal. gas inlet port
- Human machine interface with colour TFT display, keyboard and standard RS485 interface (Modbus RTU)
- All password protected, intuitive software guided menu, with diagnosis software and logbook
- Power supply analyser only 230Vac / 47-63Hz / 120W (110Vac power supply on request)
- Total length of all heated sampling lines more than 60m, requires 3-phase power supply (L1 ; L2 ; L3 ; N ; PE)
- Clean indoor mounting place, preferably air conditioned
- Outdoor mounting place in clean, +5°C to 45°C ambient, with mandatory sun & rain protection (user scope)
Measuring range
- O2: (electrochemical) 0 ... 25 %
- O2: (paramagnetic) 0 ... 25 %
- NO: (NDIR) 0 ... 200/4.000 ppm
- NO2: (NDIR) 0 ... 150/1.000 ppm
- SO2: (NDIR) 0 ... 150/4.000 ppm
- CO2: (NDIR) 0 ... 50 %
- CO: (NDIR) 0 ... 200/10.000 ppm
- N2O: (NDIR) 0 ... 100/500 ppm
- CH4: (NDIR) 0 ... 500/10.000 ppm
- C3H8: (NDIR) 0 ... 200/5.000 ppm
Dimensions and other data
- Zero point deviation : negligible due to automatic zeroing
- Deviation : less than 0.2% of the measuring range per month
- Calculated components : NOx: NO + NO2, calculated ppm or mg / m3, user-selectable O2 reference
- combustion calculations (efficiency, heat loss) on special request
- Display : Illuminated 3.5 "TFT color display
- Interfaces : Illuminated keyboard, password-protected operation
- 4 analog outputs 4 ... 20 mA, galvanically isolated, max. load: 500 R
- 2 alarm relays, potential-free contacts: 24 Vdc, 5 A
- Data storage and data logger on SD card
- RS 485 digital interface (Modbus RTU
- DIN rail RS 485, to ProfiBus converter or to Ethernet converter
- Gas sampling probe : HD gas sampling probe, heated ceramic filter with backpurge,
- or gas sampling probe HD-GW, heated glass wool filter,
- or LD gas sampling probe, unheated with in-situ sintered metal filter,
- heated or unheated gas sampling line, PTFE DN 4/6 mm
- Gas conditioning : Thermoelectric gas cooler (Peltier) with constant +4 ° C dew point
- Teflon particle filter, internal Viton tubing
- Monitored and regulated gas sampling pump
- Constant gas flow of 50 l/h
- Gas inlet pressure: -200 ... +20 mbar (hPa)
- Sample gas outlet: atmospheric pressure
- Housing : Stainless steel housing, continuously monitored housing ventilation with alarm, antifreeze heater 200 W (option)
- Operating temperature : (+5 ... +45 °C) or (-10 ... +45 °C) with housing heating
- Power supply : Universal: 90 ... 240 Vac, 47 ... 63 Hz, 120 W (420 W with heating)
- Protection : IP 54
- Dimensions : (W x H x D) 600 x 700 x 210 mm, suitable for wall mounting
- Weight : approx. 50 kg
