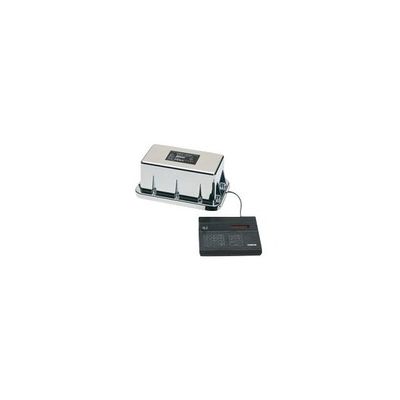

Compur - Model Statox 4120 -Stationary Gas Detectors
No new units sold anymore. Compur Monitors does support all existing systems with spare parts, consumables and service now and in future!
- ½ l9″-rack maximum of 4 Dimensions: 180 x 270 x 420mm (h X w X d)
- plug-in control panels
- 19″-rack maximum of 9 Dimensions: 180 x 485 x 420 mm (h X w X d)
- plug-in control panels
- Certificate: [E Ex ib] IIC
- Recorder output: 0 – 1 V, 4 – 20 mA
- Alarms: dual-level, user adjustable
- Relays: alarm 1, alarm 2, system fault, max. 24 V/100 mA
- LED: alarm 1, alarm 2, system run, system fault
- Data display: LED bar graph
- Protection class: IP 53
- Certificate: E Ex ib IIC T6
- Dimensions: 180 x 180 x 300 mm (h x w x l)
- Weight: 1,9 kg
- Certificate: E Ex ib IIC T6
- Dimensions: 50 x 160 x 190 mm (H x B x L)
- Weight: 330 g

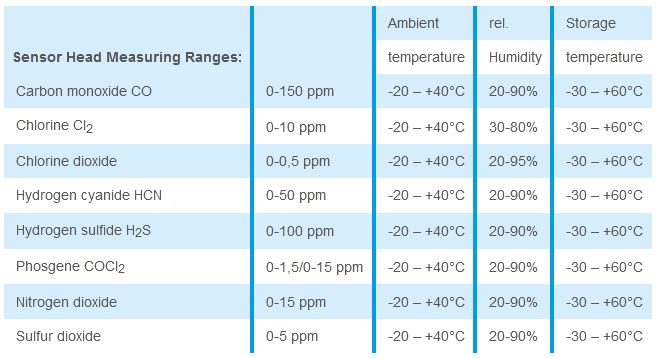

The software-controlled continuous warning system for toxic gas measuring: Cl2, ClO2, CO, COCl2,
HCN, H2S, HCl, NO2, SO2
System reliability by automatic self check
The Statox system incorporates an automatic self checking routine every 24 hours. The system completely checks all components including the sensor. The sensor is dynamically tested via an internally generated gas which assures that its´ response and recovery meet acceptable performance specifications. If a fault is detected in any of the components, it immediately notifies the control unit. The test can be initiated manually either from the control panel or the remote sensor head.
