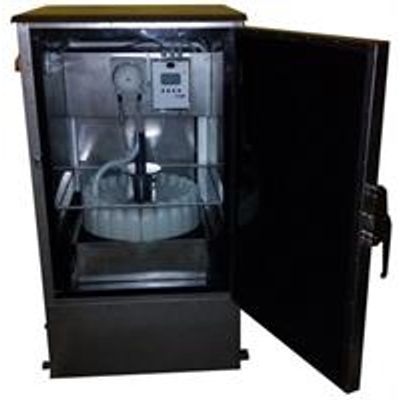

SchulzEP - Model SVP 24 V 2015 -Stationary Sampler
Stationary samplers are metal casing with a thermal insulation for tempering the samples at 4 ° C, are supplied from the power distribution. They are mainly used to control the water in sewage treatment plants, to discharges of wastewater into rivers ...
-
allow sampling type a), b) ic) by GOVERNMENT REGULATION 143 dated March 28, 2012
-
peristaltic principle of sampling
-
silicone material pump hose
-
cabinet outside stainless steel, inside plastic
-
termostatizace sample at + 4oC
-
proportional automatic setting
-
sample bottles 24 x 1.15 l of PE in the socket (the number of sample containers is nastevitelný menu in the range 1-24)
-
sucking height recommended 5 m, up to 7 m
-
stainless steel suction filter
-
one sample volume is adjustable from menu
-
Microprocessor control system in time, volume and flow volume change is
-
8 editable programs ...
-
before and after each sampling purge the entire tract
-
standard length 5 m suction hose (optional longer)
-
AC 230V
-
together reported missing - relay output
-
active program - relay output
-
Alarm modes for ext.řízení
-
input 0 / 4-20mA (instantaneous flow rate - sampling type C)
-
130 kg
