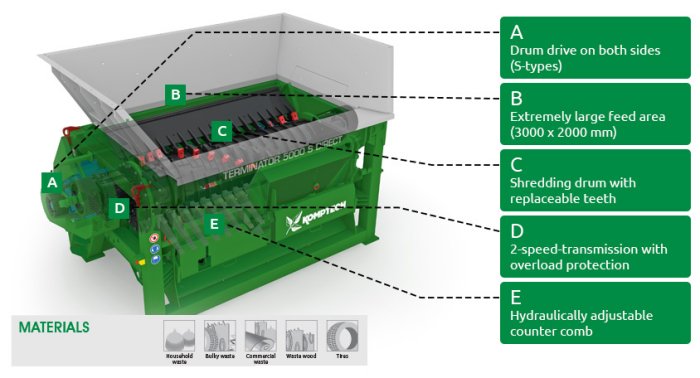

Komptech - Model Terminator -Stationary Single-Shaft Pre-Shredder

• Shredding of the most difficult materials
• Rugged design as pre-shredder provides high degree of shredding
• Variable particle size by adjusting cutting gap
• Direct-drive with 2-speed transmission (Terminator direct or hydraulic drive with constant power control

1700

DRIVE
Power (kW): 1x75

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: 14/10

WEIGHT (t)
Assembled unit: ~ 13.6

THROUGHPUT (dependent on material)
Performance(t/h):  up to 15

2200

DRIVE
Power (kW): 1x132

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: 17/13

WEIGHT (t)
Assembled unit: ~ 13.6

THROUGHPUT (dependent on material)
Performance(t/h):  up to 20

3400

DRIVE
Power (kW): 1x160

SHREDDING UNIT
Drum length (mm): 3000
Drum diameter (mm): 1050
Drum rpm:  19/14

WEIGHT (t)
Assembled unit: ~ 14.0

THROUGHPUT (dependent on material)
Performance(t/h):  up to 30

3400S

DRIVE
Power (kW): 2x75

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: 14/10

WEIGHT (t)
Assembled unit: ~ 15.0

THROUGHPUT (dependent on material)
Performance(t/h):  up to 35

5000S

DRIVE
Power (kW): 2X110

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: 20/14

WEIGHT (t)
Assembled unit: ~ 15.3

THROUGHPUT (dependent on material)
Performance(t/h):  up to 55

6000S

DRIVE
Power (kW): 2x160

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: 28/20

WEIGHT (t)
Assembled unit: ~ 15.8

THROUGHPUT (dependent on material)
Performance(t/h):  up to 75

2200

DRIVE
Power (kW): 1x132

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: Max.29

WEIGHT (t)
Assembled unit: ~ 15.1
THROUGHPUT (dependent on material)
Performance(t/h):  up to 30

3400

DRIVE
Power (kW): 1x160

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm:  Max.29

WEIGHT (t)
Assembled unit: ~ 15.5

THROUGHPUT (dependent on material)
Performance(t/h):  up to 45

3400S

DRIVE
Power (kW): 1x160

SHREDDING UNIT
Drum length (mm): 3000
Drum diameter (mm): 1050
Drum rpm: Max.27

WEIGHT (t)
Assembled unit: ~ 16.5

THROUGHPUT (dependent on material)
Performance(t/h):  up to 50

5000

DRIVE
Power (kW): 1x200

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: Max.29

WEIGHT (t)
Assembled unit: ~ 15.8

THROUGHPUT (dependent on material)
Performance(t/h):  up to 60

5000S

DRIVE
Power (kW): 1x200

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: Max.29

WEIGHT (t)
Assembled unit: ~ 16.8

THROUGHPUT (dependent on material)
Performance(t/h): up to 80

6000S

DRIVE
Power (kW): 2x160

SHREDDING UNIT
Drum length (mm): Drum diameter (mm): Drum rpm: max.38

WEIGHT (t)
Assembled unit: ~ 17.1

THROUGHPUT (dependent on material)
Performance(t/h):  up to 100

Machine type: TM 5000 S

Application: Commercial waste

Throughput: 50 t/h

The highly variable content of commercial waste can require extreme shredding power – which is exactly what you get from the Terminator S version, with its dual drum drive. The hydraulic drive provides the highest shredding power and prevents jamming and blockages. Clearing by reversing is possible at all times.
