Komptech - Model Hurrifex -Stationary Stone and Light Material Separator
The Hurrifex combines a stone separator and wind sifter in a single machine. This makes it possible to clean compost and biomass fractions of stones and light materials - primarily plastic film - in one pass. Easily adjustable separation parameters give the Hurrifex a wide range of applications, and a separation efficiency of more than 90 percent. All components are electrically powered, from grid power or with the on-board diesel generator. Large doors provide full access to all maintenance positions. Biomass processors profit from better customer demand for their fuels and higher sale prices.
- Combined unit with savings in space, materials and transportation effort compared to two separate machines
- Wide range of uses with simple operation and high availability
- Separation efficiency up to 95 % at throughputs of 80 yd3/h / 60 m³/h
- Low energy costs due to electrical drive of all components
DRIVE
Electrical power input (kW/HP): 48
MATERIAL FEED
Filling width (mm): 3‘11‘‘ / 1200 mm
DIMENSIONS L x W x H: L x W x H (mm): 12400 x 4900 x 4100 mm
Weight (t): ~ 11.5
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 60
Machine type: Hurrifex
Application: Screening residues from compost
Throughput: 55 m3/h

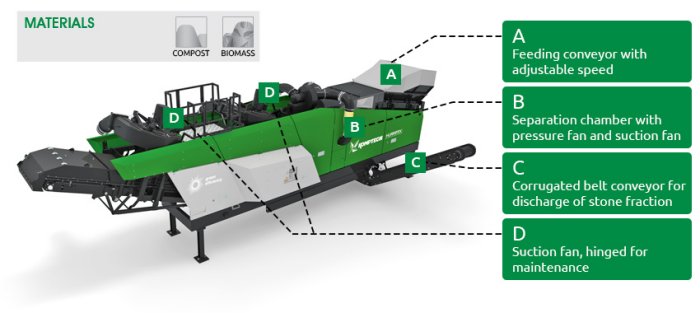

Stone fraction discharge is by a conveyor with corrugated sidewalls, light items are moved into two containers by a flexible duct. The flow of the material to be cleaned is straight, with no 90° turns. This greatly reduces the danger of blockages. The suction and conveyor fans are optimized and have a low power requirement.
