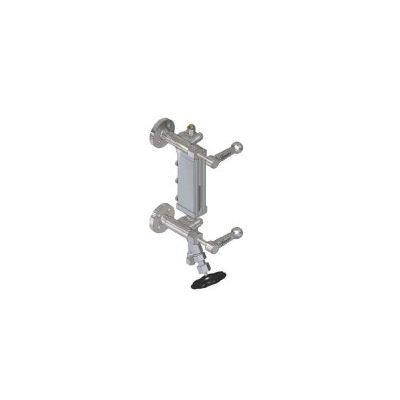

Reflex - Model LG40 -Steam Boiler Water Level Gauge

The reflex level gauge is a direct level gauge which can be used for steam boilers and containers. In the sight opening, the water level is indicated dark and the steam light. The product corresponds to the PED directive 97/23/EEC art. 3 par. 3 SEP. (Sound Engineering Practice). Applied rules as per TRD/AD2000 or ASME Boilers.
