Gothic Arch Greenhouses, Inc.

Steam Soil Sterilizer

0

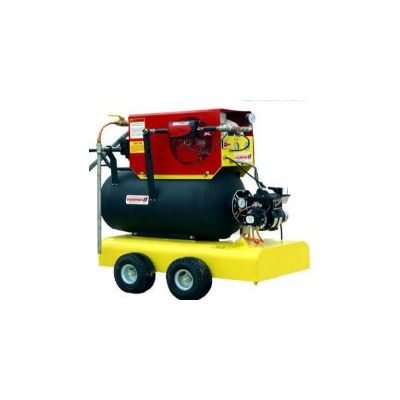

The Steam ‘N Air Soil Sterilization System is a new innovation, The Steam ‘N Air is basically the combination of three separate portable components — the SG10 Steam Generator, the AB28 Aeration Blower, and the optional Tow ‘N Dump Aeration Cart. Once attached together, they take on the job of sterilizing potting soil and other materials.

Since these are components, the customer has the option to buy any combination of components to meet their specific needs. This allows to design of a unique system that is the most profitable and affordable for their specific application.

In the sterilization steam cycle, the SG10 raises the temperature of 2 cubic yards of material to 170ºF for 2 1/2 hours. The AB28 Aeration Blower uses air force to circulate the heated air through up to 28” of material when the material is placed in an aeration bin or cart. In the cool down cycle, the AB28 Blower will dry the material to the moisture saturation level that existed prior to the steam cycle.

  • 300 lbs. steam per hour

  • 2.75 gallon #2 fuel per hour

  • 40 PSI - Ultra dry steam

  • Fuel pressure gauge

  • 8' chimney adapter

  • 120 V power supply

  • 20 gallon fuel tank

  • 200 ft. heating coil

  • Steam separator

  • Steam trap

  • 12' electrical cord

  •  Treats up to 2 cu. yards of soil in approx 2   1/2 hours
