Emec - Model Prism -Stepper Metering Pumps

SHARE

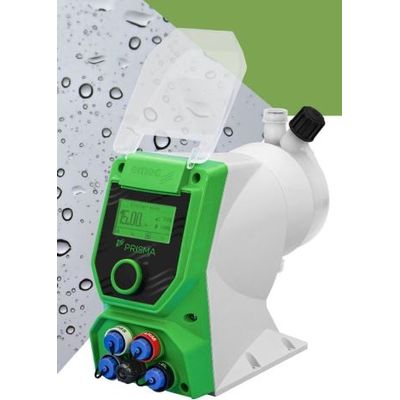

PRISMA is a metering pump with a diaphragm stepper motor. The position and speed of the diaphragm are controlled by the microprocessor for the entire delivery/suction cycle. PRISMA is equipped with Level Control, Alarms and Stand-by, while working modes include: Constant, Constant with external input, ppm, %, mlq, Pause-Work, Weekly, mA, Pulse, Volt, External Batch and Manual Batch. The included installation kit ensures the best and fastest installation.

Most popular related searches
metering pump
hybrid stepper motor
level controller
delivery cycle
pump controller

TURNDOWN RATIO
PRISMA pumps offer extremely precise control with an incredible turndown ratio of up to 4800:1. This allows the dosing process to be subdivided up to a maximum of 4800 steps to enable the most precise and even distribution of the product to be dosed.

SLOW MODE.
The Slow Mode function, when enabled, allows the suction speed to be reduced from 100% to 1% of normal speed, making priming and dosing easier, more reliable and accurate even with very viscous liquids.
