Stokkermill - Model COMPACT Series -PCB Boards and E-scrap Recycling System

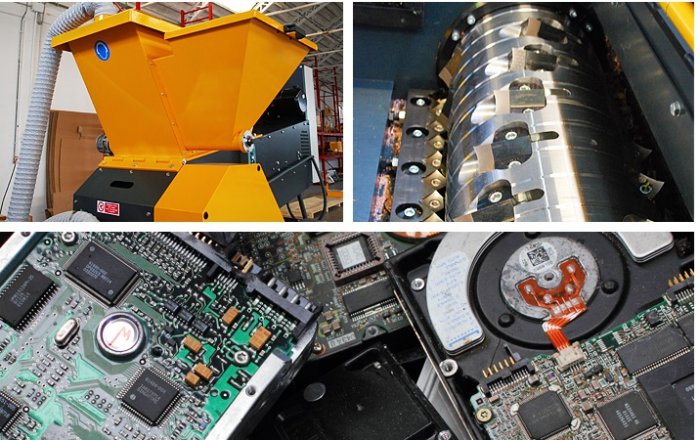

Stokkermill has developed a range of machines (Compact PCB) and recycling lines (PCB LINE) easy to use and maintain to enable the recycling of electric and electronic boards, printed circuit boards, motherboards (PCB), e-waste in general.
The solutions proposed by Stokkermill allow to valorize the materials by recovering the metals fraction and the precious metals by separating the inerts. The careful design of the machines allows to drastically reduce the loss of precious metals making the business profitable and attractive.
The Stokkemill electrostatic separation system E-Sorting, downstream of the PCB system, allows to recover the finer fractions of precious metals.
The PCB System allows to recover:
- ferrous components
- metals (copper, aluminium, tin)
- precious metals (gold, silver, palladium)
- inert organic fraction

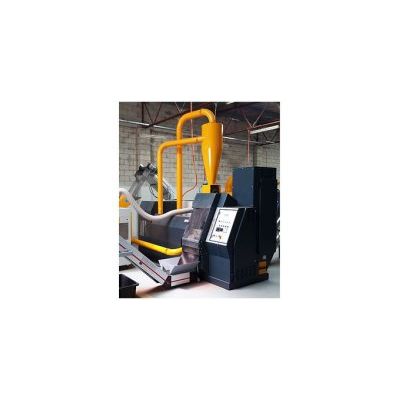

Stokkermill offers three models of compact systems – PCB Compact Line – with capacity up to 500 kg/h, while for higher production, dedicated lines can be designed on request.
- Power : 38 – 42 kW
- Size : 3070x1750x3450 mm
- Weight : 2250 Kg
- Input : 200 – 300 Kg/h
- Power : 70 kW
- Size : 4550x1760x2890 mm
- Weight : 4500 Kg
- Input : 300 – 400 Kg/h
- Power : 96 kW
- Size : 4550x1760x2890 mm
- Weight : 4750 Kg
- Input : 400 – 500 Kg/h
