Babcock - Model 97 -Stop Check Valves
This kind of valve is normally used in power plants for safe operation of a boiler. It combines the performances of a globe and a non return valve and can be supplied in straight, Y-type, angle or Y-angle designs.
Most popular related searches
stop check valve
check valve
stop valve
lift check valve
non-return valve
globe valve
backflow prevention
backflow
flow control check valve
flow control

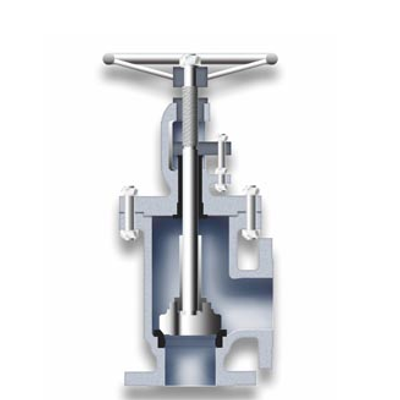

It is a globe valve with its stem disconnected from the disc. Therefore, when it is in open position, the valve works as a lift check valve with freely movement disc preventing backflow automatically; and when it is close, it will also provide a tight seal. Intermediate stem positions are available limiting the disc travel and controlling the flow rate. The stop-check valve can then be used for isolation, regulation and prevention of backflow.
- Type: Angle Stop-Check
- Bonnet: Bolted
- Sizes: 2″- 24″
- ANSI Class: 150-900
